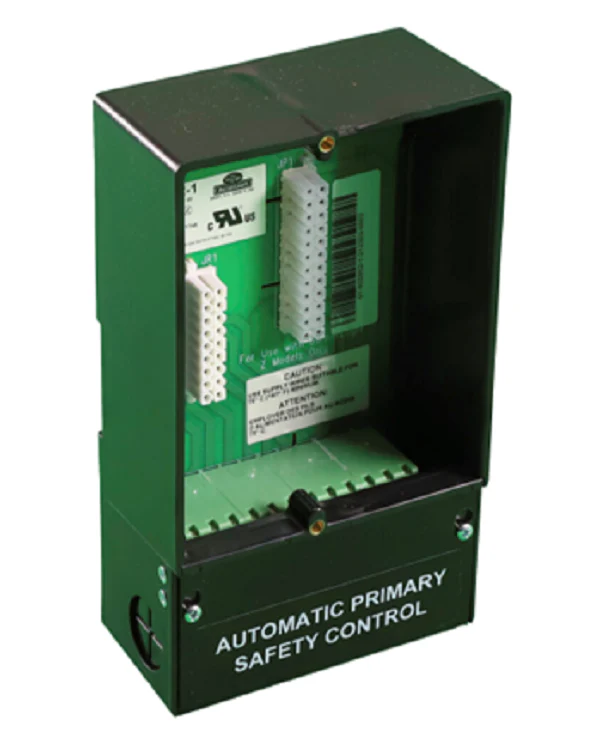

Fireye 60-2852-1 Wiring Base
The Fireye 60-2852-1 wiring base is a critical mounting component designed specifically for the BurnerLogix flame safeguard system components, including the YB or ZB series modules. This surface-mounted base provides the necessary electrical terminations for integrating burner control systems into high-capacity commercial and industrial heating applications. Built for long-term thermal stability, the base features multiple side knockouts that allow for versatile conduit entry, facilitating efficient field wiring in tight enclosure spaces. The Fireye burner control wiring base ensures a secure mechanical and electrical connection, maintaining circuit integrity for safety-critical functions such as ignition timing, flame monitoring, and fuel valve sequencing. Experienced technicians utilize this base to simplify the installation and replacement of YPFM programmer modules or display modules, ensuring the control system meets stringent industrial flame safety standards without unnecessary downtime.
Key Benefits
- Enhanced Field Versatility: Integrated side knockouts accommodate various conduit sizes for streamlined wiring layouts.
- Rugged Electrical Interface: Heavy-duty terminal blocks provide reliable connectivity for sensors, blowers, and fuel valves.
- Simplified Maintenance: Allows for quick module removal and replacement without disturbing the field wiring.
- Thermal Stability: Specifically engineered to withstand the ambient heat levels typical of boiler room environments.
- Precise Fitment: Designed exclusively for the BurnerLogix YB and ZB series system, ensuring zero-tolerance alignment.
Common Questions
Which Fireye modules are compatible with the 60-2852-1 base?
This base is designed to accept all BurnerLogix modules, including the flame safeguard and integrated burner controller units.
How does the knockout design impact installation?
The pre-stamped knockouts allow contractors to bring power and sensor wires through the sides rather than just the rear, which is essential for surface-mount applications on panels or burner chassis.
Can this base be used in place of older 60-2810 series bases?
While functionally similar for certain BurnerLogix applications, the 60-2852-1 includes specific knockout configurations for modern conduit requirements; always check the wiring schematic of the specific YB/ZB module being installed.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $103.32
-65%$103.32
$36.16Fireye 60-2852-1 Wiring Base
