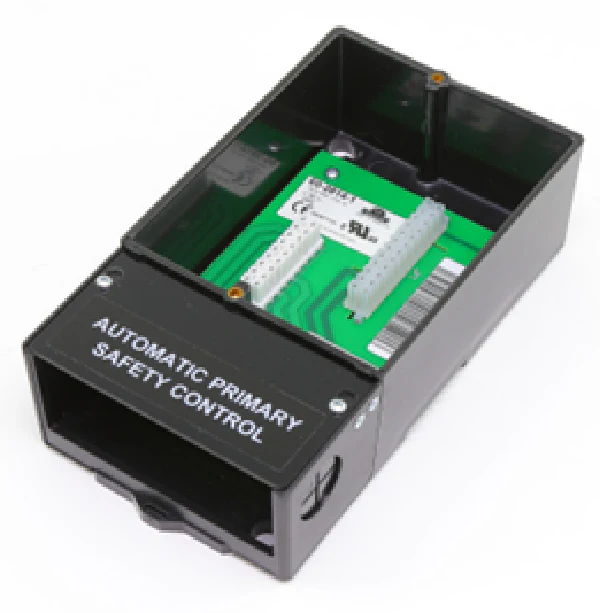

Fireye 60-2814-1 Subbase
The Fireye 60-2814-1 is a pre-wired subbase designed for internal cabinet mounting, providing a secure interface for Flame-Monitor and MicroM flame safeguard controls. Built for clean integration into burner control panels, this open-style subbase replaces the standard 60-1466-1 series during specialized installations. It facilitates precise wiring terminal connections for critical components including scanners, ignitors, and fuel valves. The unit features heavy-duty terminal blocks rated for standard line voltage applications, ensuring stable electrical continuity across the flame safeguard system. By utilizing an open-style subbase, contractors gain easier access to test points during boiler system troubleshooting and routine commissioning. The Fireye 60-2814-1 installation requires a rigid mounting surface within the enclosure to maintain structural integrity and prevent vibration-induced loosening of electrical leads. This HVAC control component is an essential replacement part for maintaining NFPA compliance in industrial and commercial combustion environments where centralized terminal termination is required.
Key Benefits
- Internal Cabinet Mounting: Designed specifically for secure placement within control enclosures, reducing external footprint.
- Pre-Wired Configuration: Streamlines the burner control wiring process, minimizing manual termination errors.
- Universal Compatibility: Engineered to work seamlessly with Fireye E110 and M-Series flame safeguard programmers.
- Durable Terminal Construction: High-quality pressure plate terminals provide superior lead retention and resist thermal cycling.
Common Questions
Is the 60-2814-1 compatible with the E110 Flame-Monitor?
Yes, this subbase is specifically designed to accommodate the terminal requirements of the Fireye Flame-Monitor series controls for cabinet-mount applications.
What is the difference between the 60-2814-1 and a standard 60-1466-2 subbase?
The 60-2814-1 is an open, pre-wired subbase intended for internal panel mounting, whereas the standard series typically includes an enclosed housing for surface mounting.
Does this subbase require specific mounting hardware?
It should be mounted using standard hardware compatible with the pre-drilled holes on the base plate, ensuring it is grounded to the panel chassis.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
