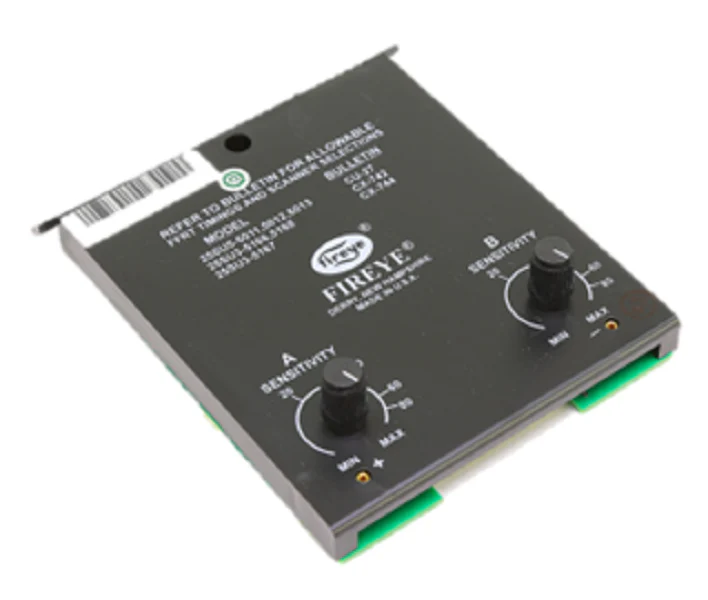

Fireye 60-2207-2 Module
The Fireye 60-2207-2 is a professional-grade high discrimination flame amplifier module specifically designed for industrial combustion environments where background radiation is a factor. As a flame safeguard control component, this module effectively filters out interference from adjacent burner flames or hot refractory surfaces, ensuring that only the specific monitored flame triggers the flame relay. This level of precision is critical for multi-burner configurations and high-intensity power generation facilities where flame signal reliability cannot be compromised.
This combustion safety module is fully compatible with the Fireye 25SU5-5012 and 25SU3-5166 chassis. By converting weak electrical signals from flame scanners into a stabilized 0-3 VDC output, it provides technicians with a robust diagnostic interface. The high-speed response time minimizes the risk of unburned fuel accumulation, while the dual sensitivity A and B settings allow for seamless field adjustments when switching between fuels or managing dual-scanner setups in heavy-duty boiler applications.
Key Benefits for the Contractor- High Discrimination Performance: Eliminates nuisance lockouts by distinguishing between the target burner and background infrared or ultraviolet radiation.
- System Versatility: Direct plug-in compatibility with 25SU5-5012 and 25SU3-5166 chassis for easy replacements and upgrades.
- Dual Sensitivity Channels: Features "A" and "B" sensitivity jumpers to accommodate different fuel types without changing hardware.
- Reliable Monitoring: Provides a steady 0-3 VDC test jack signal for real-time performance tracking and simplified troubleshooting.
- Industrial Durability: Engineered to withstand the harsh electromagnetic interference and high-temperature environments common in refineries and power plants.
Can I use the 60-2207-2 to replace a 60-2207-1?
The 60-2207-2 can be utilized in many 25SU5 systems, but it specifically features high discrimination. If your application has zero background radiation, the high-sensitivity 60-2207-1 might be standard, but the 60-2207-2 is required whenever adjacent flames or hot refractory are present.
What flame scanners are compatible with this module?
This amplifier is designed to interface with Fireye 45UV5, 45RM, 45FS, and 45UVFS scanners, provided they are correctly wired to the host chassis.
How do I adjust the sensitivity for different fuels?
Technicians can switch between Sensitivity A and B by utilizing external selector switches or jumpers on terminals 27, 28, and 29 of the wiring base, allowing the system to adapt to varying flame characteristics.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
