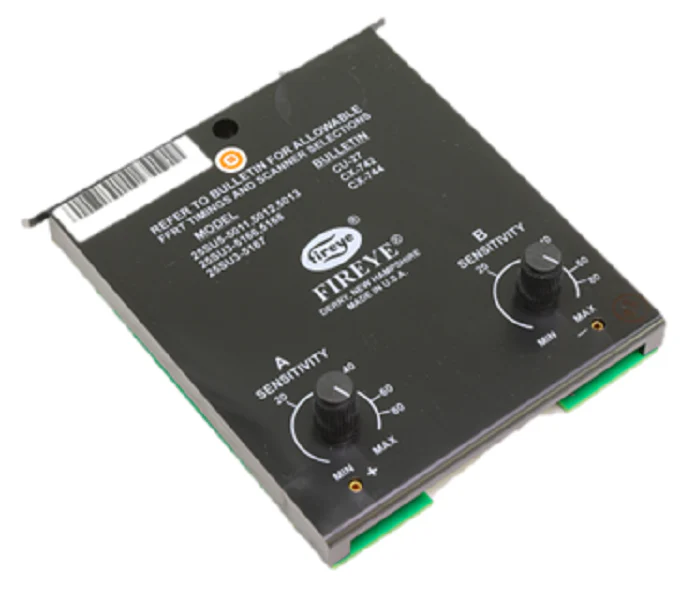

Fireye 60-2207-1 Module
The Fireye 60-2207-1 Flame Amplifier Module is a high sensitivity component engineered for integration with Fireye 25SU5-5011 and 25SU3-5168 burner management controls. As a veteran-grade flame safeguarding solution, this module is specifically calibrated for single burner applications where background radiation?Çösuch as IR from hot refractory or adjacent flames?Çöis negligible or absent. By accurately determining the flame response curve, the 60-2207-1 ensures a stable and reliable flame signal during the combustion cycle, preventing nuisance shutdowns in "black boiler" conditions. This plug-in module is housed in either a 60-2204-2 or 60-2203-2 chassis, facilitating a seamless Fireye 5011 replacement or system upgrade. Designed for industrial combustion control, it effectively processes the 1.25 to 0.25 pulse signal from compatible flame scanners, maintaining critical safety site standards without the latency found in lower-tier alternatives. Rely on this field-proven Fireye amplifier for precise flame detection and optimized HVACR system performance.
Key Benefits for Contractors- High Sensitivity Calibration: Ideal for single-burner setups with no background interference, ensuring peak detection accuracy.
- Direct Chassis Compatibility: Designed for an immediate fit into Fireye 25SU5-5011 and 25SU3-5168 safeguarding systems.
- Field-Proven Reliability: Robust internal circuitry handles standard industrial environmental demands without signal drift.
- Simplified Maintenance: The modular "plug-in" design allows for rapid diagnostic testing and replacement, reducing system downtime.
Which Fireye scanners are compatible with this module?
The 60-2207-1 is typically used with standard ultraviolet or infrared scanners that provide the required pulse rate for 5011 and 5168 series controls. For multi-burner setups or high background radiation, consider the 60-2207-2 high-discrimination variant instead.
Can I use the 60-2207-1 in a 25SU5-5012 control?
While the physical chassis may be compatible, the 5012 typically requires the 60-2207-2 high-discrimination amplifier to properly manage radiation. Always verify your specific burner configuration before swapping amplifier types.
How do I verify the flame signal strength with this module?
Techs can monitor the flame signal using the test jack on the chassis or by adding an optional 60-2205 display module, which provides LED feedback and a 0-20mA output for remote monitoring.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
