Fireye 60-2206-2 Wiring Base

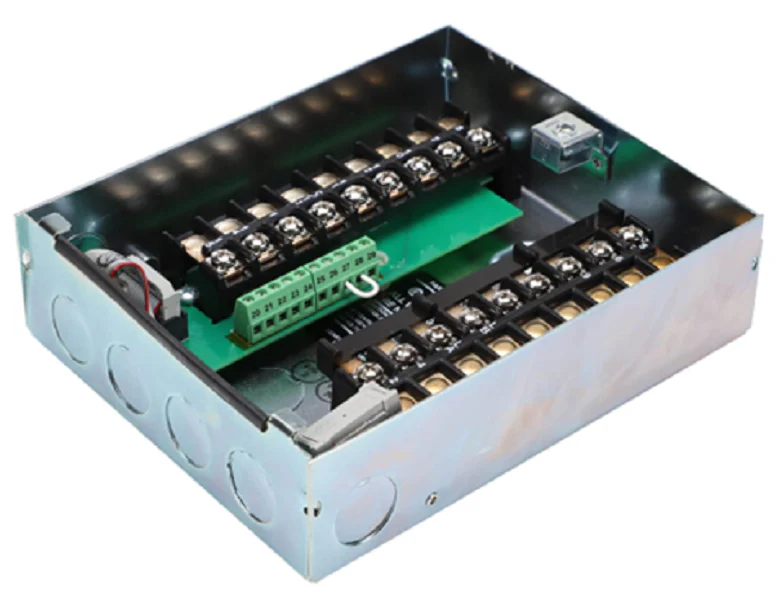

The Fireye 60-2206-2 Wiring Base is a critical subbase component specifically engineered for the Fireye 25SU3-5166 and 25SU3-5168 series combustion controls. Designed for high-integrity industrial and utility burner management systems, this terminal base provides the necessary mechanical and electrical architecture to support single or multi-burner applications. As a veteran technician, you know the importance of a secure, vibration-free mounting surface; this base facilitates precise field wiring connections, ensuring the flame monitoring signal remains stable between the chassis, amplifier, and UV flame scanner. It supports a wide operating voltage range of 120 VAC and 230 VAC (selectable on the chassis), making it a versatile choice for power generation, chemical plants, and pulp and paper mill boilers. Integrating this Fireye subbase into your burner management system ensures compliance with safety safeguard protocols while simplifying future maintenance or module swaps without pulling new wire.
Key Benefits- Application Specific: Purpose-built for Fireye 25SU3-5166 and 25SU3-5168 controls, ensuring 100% pin-out alignment and signal integrity.
- Robust Construction: Engineered to withstand industrial environments, providing a stable platform for flame safeguard modules.
- Simplified Integration: Clearly numbered terminals facilitate faster troubleshooting and prevent cross-phasing in multi-phase installations.
- Flexible Mounting: Suitable for cabinet or surface mounting, allowing for compact burner control panel layouts.
- Dual-Voltage Ready: Accommodates both 120V and 230V systems when paired with the appropriate Fireye chassis.
Is the 60-2206-2 compatible with standard MicroM or D-Series modules?
No. This wiring base is specifically designed for the 25SU3-5166 and 25SU3-5168 utility controls. For MicroM Series, you typically require the 61-3060 or 61-5042 base, and for D-Series Flame-Monitor controls, the 60-1386-2 is the standard subbase.
What is the difference between the 5166 and 5168 controls used with this base?
The 5166 is a high-discrimination/low-sensitivity amplifier model for applications with a low pulse ratio, while the 5168 features high sensitivity for applications where the flame signal pulse ratio is large (>3:1). Both utilize the 60-2206-2 base.
Does this base include a dust cover?
The base provides the terminal connections; however, for an IP20 rating or increased environmental protection, you should order the 60-2223 dust cover separately.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
