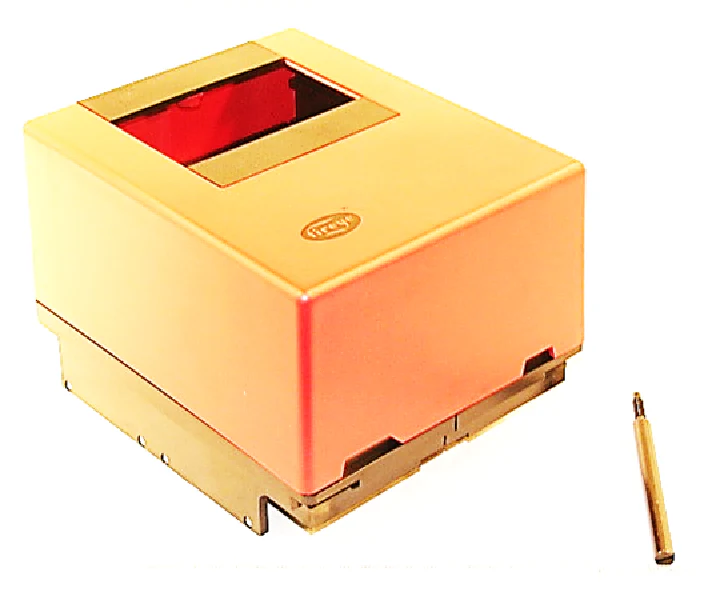

Fireye 60-2204-2 Chassis
The Fireye 60-2204-2 Chassis serves as the fundamental mounting and connection platform for the 25SU5-5011 and 25SU5-5012 flame safeguard controls. Engineered for industrial burner management, this chassis manages the critical electrical connections between the internal high-sensitivity flame amplifiers and external scanners. Advanced FFRT selection is achieved via an integrated jumper, allowing technicians to toggle between a 1-second or 4-second flame failure response time to suit specific combustion safety requirements. Constructed of high-durability materials to withstand the thermal stress of mechanical rooms, the 60-2204-2 ensures terminal integrity for 45UV5, 45RM, and 45FS series flame scanners. This surface-mount chassis is built for rapid field deployment in boiler control systems, providing a secure housing that minimizes vibration-induced signaling errors and maintains flame signal strength across long-term cycles in power generation and petrochemical processing environments.
Key Benefits:
- Configurable Safety Timing: Includes an onboard jumper to select between 1s and 4s Flame Failure Response Time (FFRT) for precise burner control.
- Broad Scanner Compatibility: Designed specifically to integrate with Fireye 45UV5, 45RM1/2/4, and 45FS1/UVFS1 ultraviolet and infrared scanners.
- Industrial-Grade Termination: Provides high-integrity electrical pathways for 120V flame safeguard modules, ensuring reliable self-checking logic.
- Dual-System Support: Fully compatible with both the high-sensitivity 5011 and the high-discrimination 5012 amplifier modules.
- Simplified Installation: Surface-mount design with standardized mounting points facilitates quick replacement of legacy burner management components.
Common Questions:
Which amplifier modules can be used with the 60-2204-2 chassis?
This chassis is designed for the Fireye 25SU5 series, specifically supporting the 60-2207-1 high-sensitivity and 60-2207-2 high-discrimination amplifier modules used in the 5011 and 5012 controls.
How do I change the FFRT setting on this unit?
The 60-2204-2 is shipped with a default 4-second flame failure response time. To change it to 1 second, technicians must remove the amplifier module and relay cover to access the internal jumper using needle-nose pliers.
Does this chassis include the wiring base?
No, the 60-2206-1 wiring base is a separate component. The 60-2204-2 contains the internal circuitry and mounting for the control modules but requires the wiring base for external field connections.
