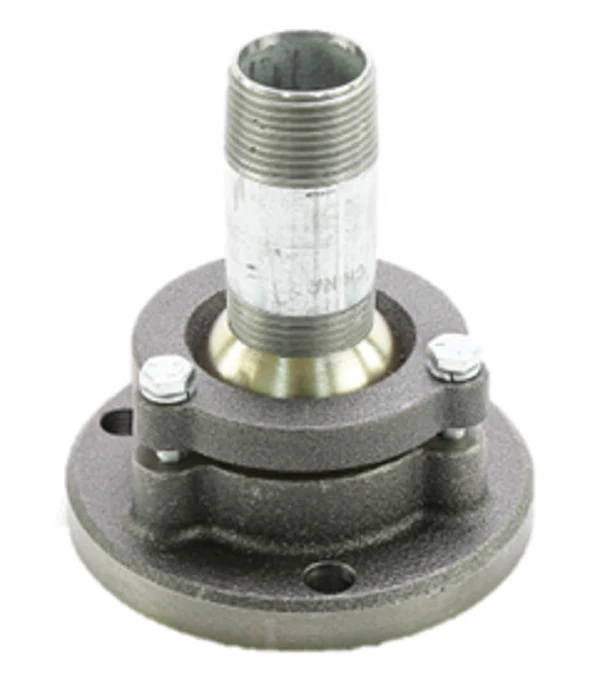

Fireye 60-1664-3 Mount
Ensure precise flame signal acquisition with the Fireye 60-1664-3, a professional-grade scanner swivel mount engineered for industrial combustion control systems. This OEM swivel mount adapter is built from rugged cast aluminum and features a 1-inch NPT scanner connection coupled with a 2-inch NPT sight pipe mount. The robust design includes a 3-hole, 120-degree bolt pattern, allowing for reliable anchoring and incremental 360-degree rotation to achieve the exact sighting angle required for peak sensitivity. Designed by veteran engineers, this assembly is indispensable for flame detector alignment on multi-burner fronts and large furnaces where sighting accuracy directly impacts the flame safeguard response. It provides full compatibility with Fireye 45UV5 self-checking scanners, as well as 45RM infrared and 45FS series models. By installing this 1" NPT swivel adapter, contractors can easily compensate for sight pipe misalignments and optimize the optical field of view in high-temperature environments without compromising the pressure-tight integrity of the sight pipe assembly.
Key Benefits:
- Optimized Signal Strength: Enables precise mechanical flame scanner alignment to maximize ultraviolet or infrared signal detection.
- Broad Compatibility: Seamlessly integrates with Fireye 45UV2, 45UV3, 45UV5, 45RM, and 45FS scanner series.
- Industrial Durability: Cast aluminum housing provides superior heat resistance and structural stability for continuous-duty boiler operations.
- Flexible Installation: Features dual-thread sizing (1" NPT to 2" NPT) and a universal bolt pattern for diverse mounting configurations.
- Pressure Integrity: Maintains a secure, oil-resistant seal when properly gasketed, preventing site pipe pressure leakage.
Common Questions:
Can I adjust the scanner position while the burner is firing?
Yes, the swivel mount adapter is specifically designed to allow for directional sighting adjustments after the scanner has been piped in, ensuring the optics are centered on the most active portion of the flame for reliable monitoring.
What is the best way to prevent lens fouling with this mount?
Technicians should utilize the 3/8-inch threaded housing inlet or a 1-inch wye fitting ahead of the mount for continuous purge air injection. This keeps the optics clear of soot and fly ash, especially when burning heavy oils or coal.
Will this mount fit older 45UV2 or 45UV3 models?
This part is a direct 1-inch NPT mounting solution compatible with 45UV2, 45UV3, and the self-checking 45UV5 scanner models, providing a versatile upgrade for improved sighting on legacy installations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
