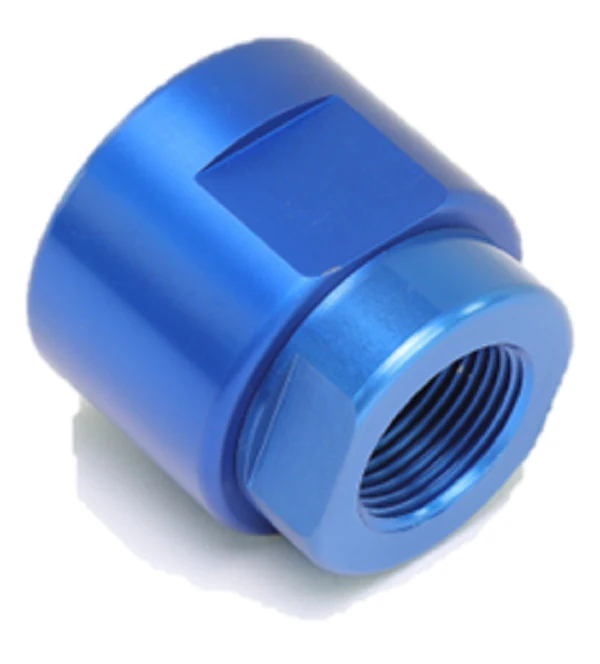

Fireye 60-1199-1 Coupling
The Fireye 60-1199-1 is a 1-inch NPT sealing coupling window designed for critical industrial flame monitoring applications. Engineered to protect the optical path of sensitivity-matched sensors, this component serves as a pressure barrier when the scanner lens is exposed to excessive furnace or windbox pressures. By integrating a high-purity quartz window, it maintains a transparent signal path for ultraviolet flame detection, specifically for the Fireye 45UV5 scanner series. This coupling effectively isolates the scanner from hazardous process gases while facilitating the use of purge air via its 1-inch wye connection to keep the optical surface free from soot and debris.
As a direct replacement for the legacy 60-1199 model, the 60-1199-1 features heavy-duty NPT threaded connections for a secure, airtight fit within the sight pipe assembly. It is essential for systems firing natural gas, diesel, or methane where continuous performance is required. For technicians managing flame safeguard controls, this coupling ensures the scanner's self-checking circuit remains functional by preventing lens fouling and thermal stress.
Key Benefits- Pressure Isolation: Protects internal scanner optics from fluctuating windbox and furnace pressures.
- High-Clarity Quartz: Optimized for the 2200 to 2600 angstrom range, ensuring no loss in UV signal sensitivity.
- Contamination Control: Facilitates 4-15 SCFM purge air flow to prevent particulate buildup on the window.
- Rugged Compatibility: Specifically designed for Fireye 45UV5 self-checking scanners and 1-inch NPT sight pipes.
- Direct OEM Fit: Replaces the older 60-1199 version without requiring modification to existing mountings.
Is the window material standard glass or quartz?
The Fireye 60-1199-1 utilizes a specialized quartz window to allow ultraviolet radiation to pass through, as standard glass blocks the UV wavelengths necessary for flame detection.
When is a sealing coupling required for a flame scanner?
A sealing coupling window is required whenever the scanner lens installation is subjected to positive furnace pressure or when there is a risk of process gases leaking into the scanner housing.
What is the connection size for this coupling?
This model features standard 1-inch NPT threads, making it compatible with most North American combustion control sight pipe configurations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $431.24
-65%$431.24
$150.93Fireye 60-1199-1 Coupling
