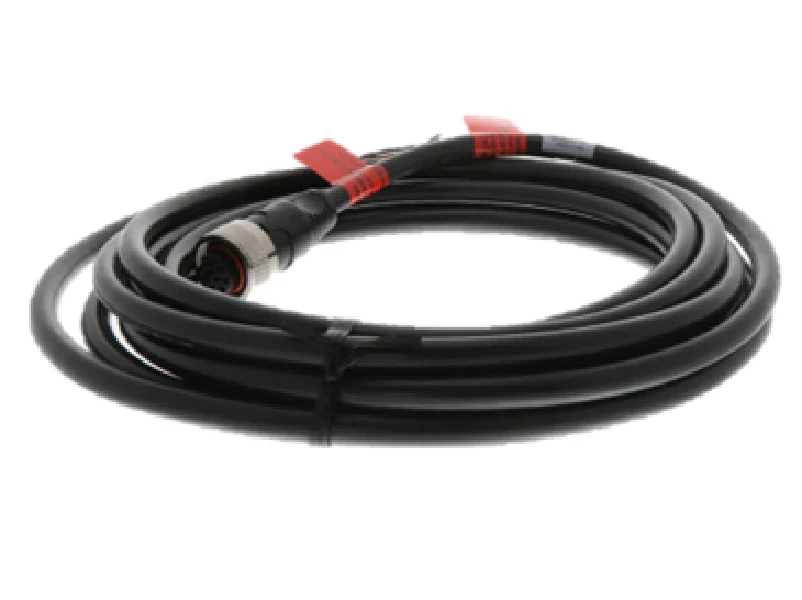

Fireye 59-598-6 Cable
The Fireye 59-598-6 Cable is a specialized 20-foot (6-meter) factory-wired assembly engineered for seamless integration with Fireye Simplicity 65UV5 series flame scanners. This 8-conductor cable assembly features a robust 8-pin female quick-disconnect plug, streamlining field installations and reducing the risk of manual wiring errors during critical burner management system (BMS) setups. Constructed with #18 AWG wires and an overall braided shield, the cable is designed to mitigate electromagnetic interference (EMI), ensuring stable communication and precise signal transmission for industrial combustion applications.
The PVC jacket provides excellent durability, meeting UL PLTC Class 1, Div 2 standards, making it suitable for hazardous locations without the immediate need for conduit in many jurisdictions. For technicians performing routine maintenance or system upgrades, this 20ft QuickConnect cable allows for rapid scanner replacement and testing. The assembly includes an Allen wrench for secure connector attachment, maintaining a weather-tight seal in operating environments ranging from -40??F to 150??F. When reliability in flame safety is the priority, utilizing OEM flame scanner cables ensures full compatibility with 24 Vdc input power and 4-20 mA analog outputs.
Key Benefits:- Quick-Disconnect Integration: The 8-pin female plug enables fast "plug-and-play" connections with 65UV5-1004QD scanners.
- Enhanced Shielding: Internal braided shield protects sensitive 4-20 mA flame signals from industrial electronic noise.
- Hazardous Location Rated: Complies with Class I, Div 2 regulations for safe operation in volatile environments.
- Precision Fit: 18 AWG multi-strand conductors minimize voltage drop over 20-foot runs.
- Is this cable compatible with all Fireye scanners? No, the 59-598-6 is specifically designed for the Simplicity 65UV5 series with quick-disconnect fittings.
- Can this cable be used without conduit? Yes, its PLTC-ER rating allows for exposed run usage in many industrial applications, provided local codes are met.
- How does the shielding connect to the system? The overall braid should be terminated to earth ground at the control panel to ensure maximum interference rejection.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
