Fireye 59-598-15 Cable

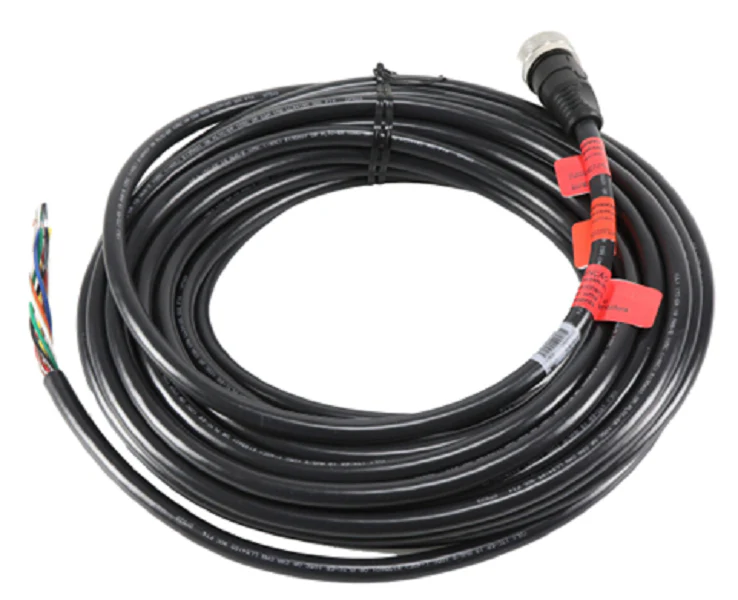

For specialized boiler rooms and burner management assemblies, the Fireye 59-598-15 is a professional-grade 50ft QuickConnect cable designed for the Fireye 65UV5 series of integrated flame scanners. This heavy-duty 8-conductor cable assembly features a factory-installed 8-pin female connector, ensuring a secure and reliable flame scanner connection without the need for manual pin termination. Constructed with 18 AWG wires and a robust overall braided shield, it provides superior protection against electromagnetic interference (EMI) and ignitor noise, which are common causes of erratic signal readings in industrial environments.
The cable jacket is made from durable PVC and carries a PLTC-ER rating, making it suitable for Class 1, Division 2 hazardous locations. It is engineered for long-term deployment in demanding environments with a temperature rating of -40??F to 221??F. Using this pre-wired cable assembly streamlines field maintenance and equipment replacement, allowing technicians to quickly swap out scanners while maintaining consistent 4-20mA signal integrity and flame relay communication for your combustion control system. The integrated design eliminates the need for conduit in many specific applications, saving significant labor time during HVAC installation.
Key Benefits
- Industrial Integrity: PLTC-ER rated and UL recognized for use in Class 1, Division 2 hazardous environments.
- Noise Suppression: Integrated braided shield prevents ignitor noise from affecting the 4-20mA flame signal strength.
- Simplified Maintenance: 8-pin female QuickConnect allows for rapid field replacement of Fireye 65UV5 scanners.
- Durable Construction: UV and oil-resistant PVC jacket designed for a temperature range of -40??F to 221??F.
- Extended Reach: 15-meter (approximately 50ft) length provides ample slack for complex burner layouts.
Common Questions
Is this cable compatible with other Fireye scanner series?
This specific 8-pin assembly is designed for the Simplicity 65UV5 series. For InSight or Phoenix scanners, verify the pin count and connector series before installation.
Can I install this cable without conduit?
The PLTC-ER rating typically allows for exposed run (ER) installation in industrial settings, provided it is supported according to local NEC regulations and protected from physical damage.
Does the 50ft length affect the 4-20mA signal?
The use of shielded 18 AWG conductors within the Fireye 59-598-15 ensures that flame intensity signals remain stable over the entire 50ft span when properly grounded.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
