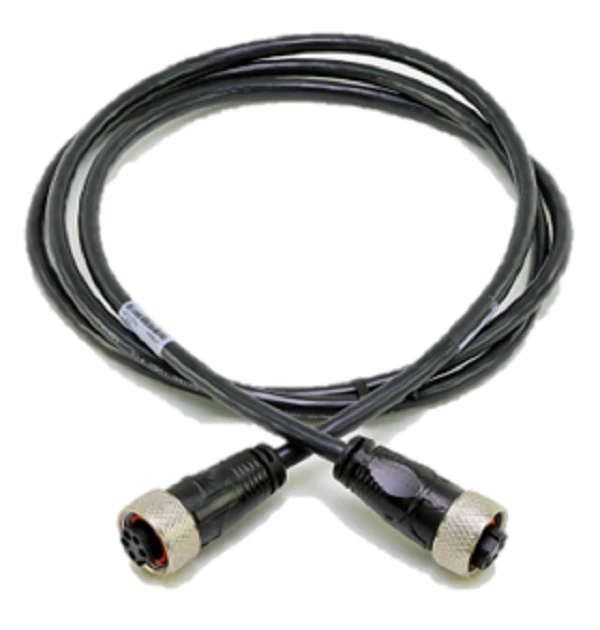

Fireye 59-565-6 Cable with Connectors
The Fireye 59-565-6 is a 6-foot dedicated flame scanner cable assembly engineered for reliable signal transmission between integrated flame scanners and combustion management systems. Designed specifically for use with the Fireye Phoenix and InSight series, this cable features factory-terminated connectors that ensure a low-impedance connection, critical for maintaining flame signal integrity in high-EMI (electromagnetic interference) environments. The industrial-grade jacket provides essential protection against chemical exposure and thermal stress found in burner front applications. For technicians performing burner control troubleshooting, utilizing the Fireye 59-565-6 cable eliminates common failure points associated with field-terminated wiring, such as signal attenuation or intermittent faults. This OEM component ensures your flame safeguard system maintains a stable flame-on signal, preventing nuisance shutdowns and specialized for applications requiring precise optical flame detection synchronization.
- Pre-terminated Connectors: Factory-molded ends reduce installation time and prevent wiring errors during combustion controller setup.
- Shielded Construction: High-density shielding protects the millivolt flame signal from RFI/EMI interference common in industrial boiler rooms.
- Specific Compatibility: Hard-coded for Fireye Phoenix 85UVF/IRF and InSight II scanners, ensuring correct pin-out alignment.
- Durable Jacketing: Rated for high-ambient temperatures and resistant to oil and moisture penetration on the burner front.
Common Technical Questions
Can the 59-565-6 cable be shortened in the field?
While possible, it is not recommended for the Fireye 59-565-6 because the factory-molded connectors are designed to maintain a sealed, moisture-proof barrier. Modification may compromise the shielding effectiveness and signal-to-noise ratio.
Does this cable support both UV and IR signal types?
Yes, this flame scanner connector cable is designed to carry the complex signals required by multi-spectrum scanners, including both Ultraviolet and Infrared data streams, back to the flame amplifier.
What causes signal loss in longer cable runs?
Voltage drop and external interference are the primary culprits. Using the Fireye 59-565-6 ensures that the specific capacitive and resistive properties required by the burner management system are met within the 6-foot specification.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
