Fireye 59-546-6 Wire

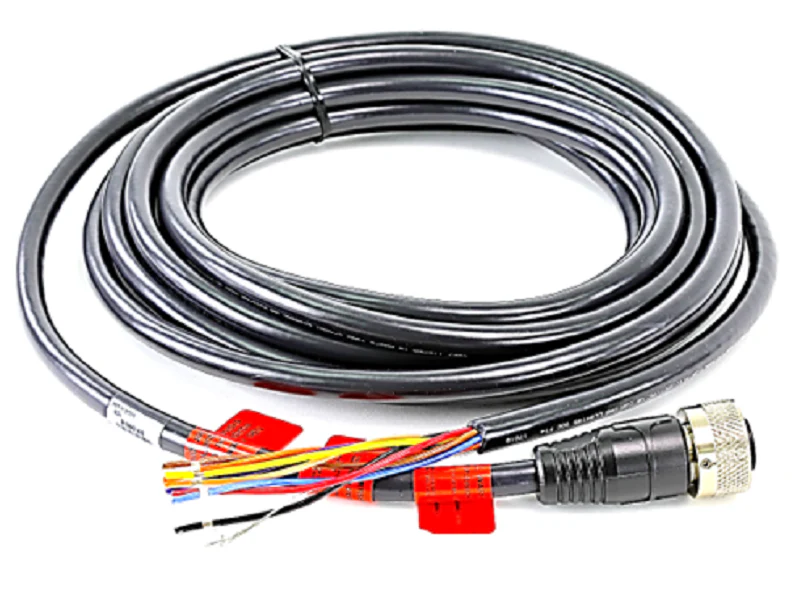

The Fireye 59-546-6 is a professional-grade 8-conductor cable assembly designed for high-performance integration with Fireye InSight II and Phoenix flame scanners. Measuring 6 meters (approx. 20 feet), this factory-wired solution features a robust 8-pin female quick disconnect connector, allowing for rapid field replacement and streamlined maintenance of critical combustion control systems. This industrial-strength cable is essential for ensuring reliable signal transmission between integrated scanners and burner management systems in demanding boiler and furnace environments.
Engineered for electrical integrity, the Fireye 59-546-6 wire utilizes #18 AWG conductors protected by a dual-layer foil and braided shield to effectively mitigate electromagnetic interference (EMI). The assembly is housed in a durable PVC jacket with PLTC-ER and ITC-ER ratings, providing superior resistance to abrasion and moisture. With a wide operational temperature range of -40??F to +221??F (-40??C to +105??C), this quick disconnect cable maintains consistent performance in extreme mechanical and thermal conditions, ensuring the flame safeguard control circuit remains secure.
Key Benefits
- Optimized Compatibility: Specifically designed for Fireye Phoenix (85UVF/IRF) and InSight II (95DSS3) integrated flame scanners.
- Industrial Durability: Features a high-quality 8-conductor build with PLTC-ER (Power Limited Tray Cable-Exposed Run) rating for rugged installations.
- Signal Protection: Integrated shielding prevents signal degradation from common industrial electrical noise and interference.
- Efficient Installation: The 6m quick disconnect design eliminates the need for complex field wiring, reducing downtime during scanner swaps.
Common Questions
- Can this cable be used with other scanner brands? No, this assembly is engineered specifically for Fireye Insight II and Phoenix series scanners; using it with non-compatible hardware can cause signal failure.
- What is the proper way to handle the grounding? To prevent erratic operation, the scanner shield must be properly connected to earth ground, typically through the drain wire at the junction box.
- Is the cable suitable for high-voltage conduit? It is best practice to route the Fireye 59-546-6 in a separate conduit away from high-voltage ignition or AC lines to avoid induced interference.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
