Fireye 59-546-3 Wire

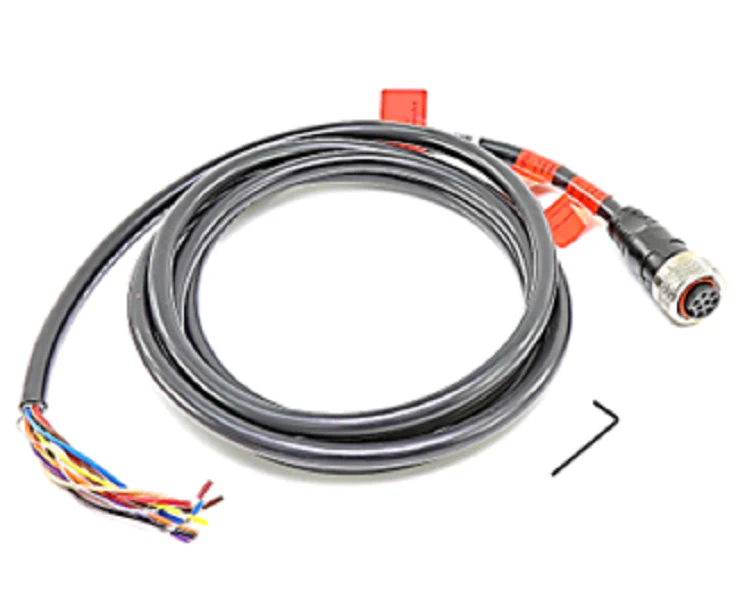

The Fireye 59-546-3 is a purpose-built, 8-conductor factory-wired cable assembly designed for seamless integration with Fireye InSight II and Phoenix quick-disconnect flame scanners. This 10-foot (3-meter) shielded cable features a high-durability PVC jacket and an 8-pin female connector, ensuring a secure, noise-resistant link between the scanner and the junction box. Engineered for demanding industrial combustion environments, it carries ITC-ER and PLTC-ER ratings, permitting its use in exposed runs without the immediate need for conduit in specific applications. The foil and braided shielding architecture is critical for maintaining signal integrity, effectively mitigating electromagnetic interference (EMI) that can disrupt sensitive flame monitoring circuits. This assembly is standard for Type 85UVF and 95DSS3 systems, supporting efficient flame safeguard control and multi-burner discrimination. For technicians performing field replacements or new installs, this pre-terminated lead reduces wiring errors and ensures compliance with Class I, Division 2 hazardous location requirements when coupled with the appropriate scanner housing.
Key Benefits- Optimized Signal Integrity: Dual-layer copper braid and foil shielding prevents signal attenuation and protects against electrical noise common in boiler rooms.
- Durable Construction: The rugged PVC jacket is rated for a wide temperature range of -40??F to +221??F, resisting abrasion and chemical exposure.
- Code Compliance: Meets ITC-ER and PLTC-ER standards, allowing for flexible installation and simplified cable routing in industrial control loops.
- Quick-Disconnect Efficiency: Factory-terminated 8-pin connector facilitates rapid sensor swaps and reduces downtime during routine burner maintenance.
- Is this cable compatible with both UV and IR scanners? Yes, the 59-546-3 assembly is the standard 8-conductor lead for all Fireye Phoenix and InSight II integrated scanners, regardless of the sensor type (Infrared or Ultraviolet).
- What tools are required for installation? The unit includes an Allen wrench for securing the quick-disconnect housing to the scanner base, ensuring a tight, vibration-resistant seal.
- Can this cable be used in hazardous locations? When used with compatible Fireye scanner models, this ITC-rated cable is suitable for Class I, Division 2 industrial control environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $177.48
-65%$177.48
$62.12Fireye 59-546-3 Wire
The Fireye 59-546-3 is a purpose-built, 8-conductor factory-wired cable assembly designed for seamless integration with Fireye InSight II and Phoenix quick-disconnect flame scanners. This 10-foot (3-meter) shielded cable features a high-durability PVC jacket and an 8-pin female connector, ensuring a secure, noise-resistant link between the scanner and the junction box. Engineered for demanding industrial combustion environments, it carries ITC-ER and PLTC-ER ratings, permitting its use in exposed runs without the immediate need for conduit in specific applications. The foil and braided shielding architecture is critical for maintaining signal integrity, effectively mitigating electromagnetic interference (EMI) that can disrupt sensitive flame monitoring circuits. This assembly is standard for Type 85UVF and 95DSS3 systems, supporting efficient flame safeguard control and multi-burner discrimination. For technicians performing field replacements or new installs, this pre-terminated lead reduces wiring errors and ensures compliance with Class I, Division 2 hazardous location requirements when coupled with the appropriate scanner housing.
Key Benefits- Optimized Signal Integrity: Dual-layer copper braid and foil shielding prevents signal attenuation and protects against electrical noise common in boiler rooms.
- Durable Construction: The rugged PVC jacket is rated for a wide temperature range of -40??F to +221??F, resisting abrasion and chemical exposure.
- Code Compliance: Meets ITC-ER and PLTC-ER standards, allowing for flexible installation and simplified cable routing in industrial control loops.
- Quick-Disconnect Efficiency: Factory-terminated 8-pin connector facilitates rapid sensor swaps and reduces downtime during routine burner maintenance.
- Is this cable compatible with both UV and IR scanners? Yes, the 59-546-3 assembly is the standard 8-conductor lead for all Fireye Phoenix and InSight II integrated scanners, regardless of the sensor type (Infrared or Ultraviolet).
- What tools are required for installation? The unit includes an Allen wrench for securing the quick-disconnect housing to the scanner base, ensuring a tight, vibration-resistant seal.
- Can this cable be used in hazardous locations? When used with compatible Fireye scanner models, this ITC-rated cable is suitable for Class I, Division 2 industrial control environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
