Fireye 59-497-010 Cable

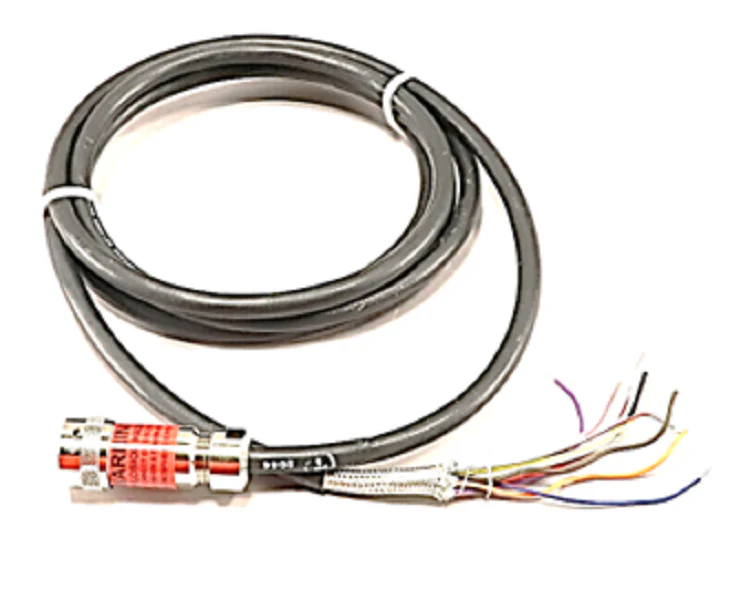

The Fireye 59-497-010 Cable is a 10-foot, factory-wired flame scanner cable assembly engineered specifically for InSight I integrated scanners. This 12-conductor shielded cable ensures high-integrity signal transmission for flame safeguard controls by shielding sensitive data from electromagnetic interference in high-voltage burner environments. Equipped with a straight quick-disconnect connector, it provides a secure and rugged interface between the flame detector and the burner management system, significantly reducing the risk of signal attenuation or intermittent faults during critical monitoring cycles.
Designed for industrial boiler and burner applications, the 59-497-010 facilitates 24VDC power, flame relays, fault relays, 4-20mA monitoring, and RS-485 communications. This pre-terminated 10' cable with straight connector simplifies field replacement and new installations by eliminating manual terminal wiring errors. For specialized environments, this assembly can be integrated with 1/2" flexible conduit to provide additional mechanical protection against high inductive loads and harsh industrial conditions.
Key Benefits:- InSight I Compatibility: Precision-engineered for seamless integration with Fireye InSight flame scanners.
- 12-Conductor Shielded Design: Minimizes signal crosstalk and protects against high-voltage spark ignition interference.
- Quick-Disconnect Terminal: Allows for rapid hot-swappable replacements to minimize system downtime.
- Factory-Terminated Integrity: Eliminates field-wiring errors for 24VDC, 4-20mA, and relay logic signals.
- Standard Straight Connector: Provides a direct, space-efficient connection for standard scanner mounting profiles.
Can I use this cable for 4-20mA flame signal feedback?
Yes, the 12-conductor pinout includes dedicated leads (Violet and Grey/Red) specifically for 4-20mA output transmission to your BMS or PLC.
Is this cable shielded against electrical noise?
Detailed shielding is built into the 59-497 series to isolate the scanner signal from high inductive wiring and high-voltage ignition systems often found in burner front assemblies.
Are there long-run options if 10 feet is insufficient?
While the 59-497-010 is the standard 10-foot version, the 59-497 series is available in extended lengths to accommodate specific site-run requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,017.87
-65%$1,017.87
$356.25Fireye 59-497-010 Cable
