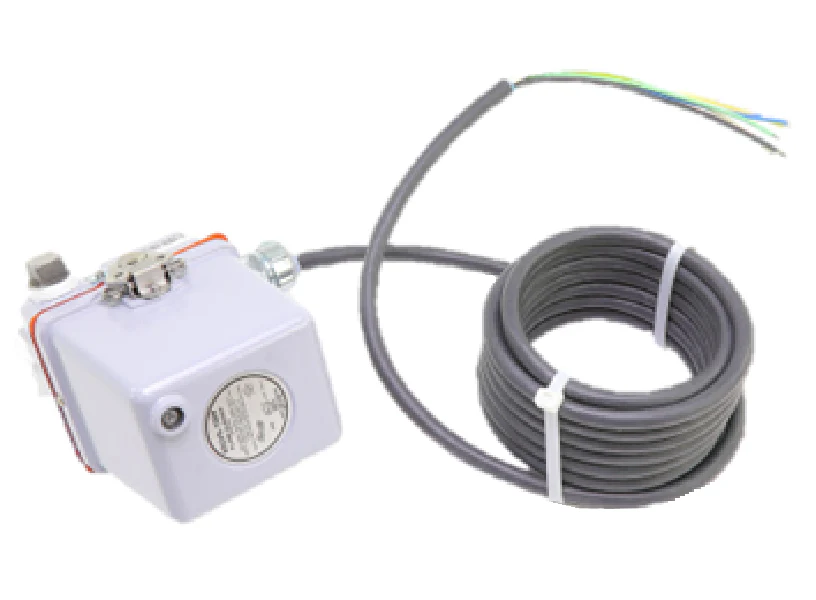

Fireye 55UV5-1009 Scanner
The Fireye 55UV5-1009 is a high-performance ultraviolet flame scanner engineered for continuous-duty industrial burners. Designed with a 1" NPT mounting connection, this UV self-check scanner is essential for monitoring fossil fuel flames, including natural gas, propane, and diesel. As a veteran-grade flame safeguard component, it features an integrated electromagnetic shutter that performs a shutter self-test every few seconds, ensuring the UV-sensitive tube is functioning correctly without requiring a manual burner shutdown. This hazardous location flame detector is rated for Class I, Division 2, Groups A, B, C, and D, as well as Class II, Division 2, Groups F and G, making it suitable for volatile environments. Housed in a rugged NEMA 4X and IP66-rated cast aluminum enclosure, the unit withstands harsh conditions while providing reliable signal transmission to BurnerLogix, Flame-Monitor, and MicroM control systems. The 102-260 VAC operation and 20-foot integral cable ensure seamless integration into existing combustion management frameworks.
Key Benefits- Hazardous Area Certified: Meets Class I, Div 2 and Class II, Div 2 standards for safe operation in industrial environments.
- Integrated Self-Checking: The internal shutter mechanism eliminates the need for periodic manual tube testing in continuous-fire applications.
- Rugged Construction: Cast aluminum NEMA 4X / IP66 housing provides superior protection against dust, water, and corrosion.
- High Sensitivity: Optimized for a spectral range of 190 to 250 nanometers to accurately detect UV radiation from diversos fossil fuels.
- Broad Compatibility: Interface directly with professional-grade Fireye flame safeguard controls like the Flame-Monitor and D-Series.
What fuels are compatible with the 55UV5-1009 scanner?
This scanner is designed for fossil fuel flames such as natural gas, propane, butane, kerosene, and diesel. It is not recommended for coal or heavy oil flames where infrared radiation is more prevalent.
Can this scanner be used for 24-hour continuous operation?
Yes, the Fireye 55UV5-1009 is specifically designed for continuous-duty burners. The 4-second shutter cycle ensures the signal circuit and UV tube are verified constantly while the burner remains in operation.
What is the difference between the 55UV5-1007 and the 55UV5-1009?
The primary difference is the mounting thread. The 55UV5-1009 features a 1" NPT (National Pipe Thread) mount, whereas the 1007 model typically uses a 1" BSP (British Standard Pipe) thread.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $2,518.19
-65%$2,518.19
$881.37Fireye 55UV5-1009 Scanner
