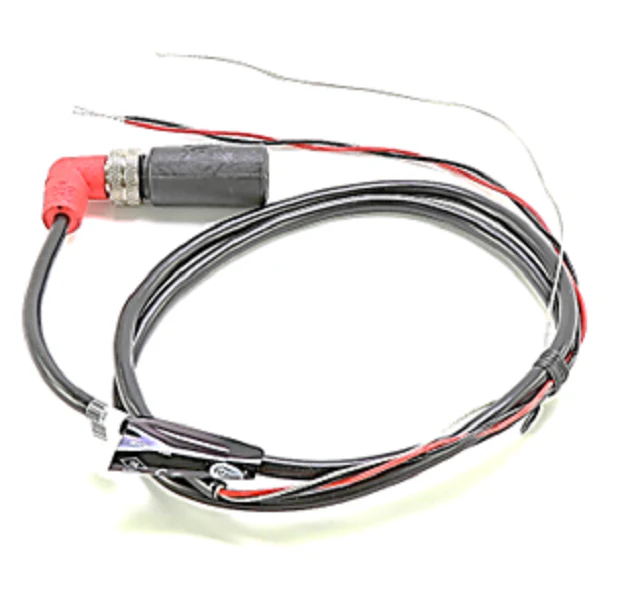

Fireye 48PT2-9007 Scanner
The Fireye 48PT2-9007 is a high-sensitivity infrared flame scanner designed for seamless integration with Burner Management Systems (BMS). This 90-degree side-view scanner is engineered to detect the infrared signatures of gas and oil flames, making it a critical component for industrial combustion safety. Built with a 4-foot shielded lead wire, the 48PT2-9007 provides a reliable signal path to the flame safeguard control, minimizing electromagnetic interference in high-voltage environments. Its infrared (IR) sensor is optimized for low-frequency flicker detection, effectively differentiating between actual burner flames and background radiation or hot refractory surfaces. Designed for compatibility with Fireye Flame-Monitor and MicroM series controls, this scanner provides a consistent 4-20mA or voltage pulse output depending on the amplifier used. Proper alignment is facilitated by the 90-degree orientation, allowing for installation in tight mechanical clearances where straight-line mounting is impractical.
Technical Key Benefits
- Optimized IR Detection: Specifically tuned for gas and oil flame signals, ensuring reliable flame-on verification.
- 90-Degree Side-View Housing: Ideal for compact boiler configurations and burner heads with limited access.
- Integral 4-Foot Lead: Factory-sealed lead wire ensures robust connectivity and resistance to vibration.
- Refractory Discrimination: Advanced sensor technology focuses on flame flicker to prevent nuisance trips caused by hot furnace walls.
- Standard 1/2" NPT Mount: Ensures easy field replacement and secure mechanical attachment to the sight pipe.
Common Installation Questions
What controls are compatible with the Fireye 48PT2-9007?
This scanner is designed for use with Fireye MicroM, Flame-Monitor, D-Series, and M-Series controls when paired with the appropriate IR amplifier.
Can the 48PT2-9007 be used for continuous burner operation?
Yes, when used with a self-checking flame safeguard control, it is suitable for both intermittent and continuous duty cycles in industrial combustion systems.
How do I prevent signal loss over long distances?
Ensure the shielded lead wire is properly grounded at the control end and avoid routing scanner cables adjacent to high-voltage ignition transformer wires.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
