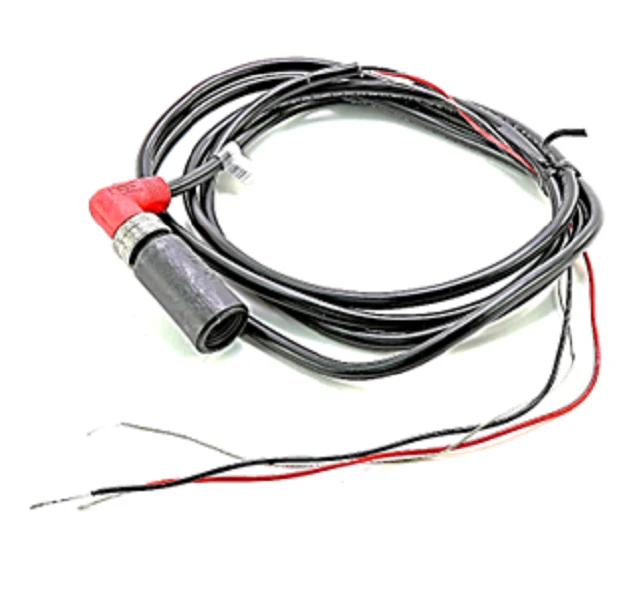

Fireye 48PT2-9003 Infrared Scanner
The Fireye 48PT2-9003 is a professional-grade infrared flame scanner designed for industrial and commercial burner applications. This lead sulfide detector is engineered to sense low flicker frequency IR signals from gas, oil, or coal flames, making it a versatile choice for multi-fuel systems. Featuring a 90-degree head and 1/2" NPT mounting collar, the 48PT2-9003 excels in tight installations where a straight-line sight path is obstructed. This specific model comes equipped with 8-foot lead wires rated for Tray Cable - Exposed Run (TC-ER), meeting UL 1569 crush and impact standards. The low-impedance sensor design ensures stable flame detection and is fully compatible with Fireye Flame-Monitor, MicroM, BurnerLogix, and D-Series controls. For technicians maintaining mission-critical equipment, the Fireye 48PT2-9003 provides the thermal stability needed for continuous operation in ambient temperatures ranging from -40??F to 140??F.
Key Benefits- Universal Application: Seamlessly detects infrared signatures from gas, oil, and coal-fired burners.
- Flexible Mounting: The 90-degree angled head allows for precise sighting in compact burner housings.
- Durable Construction: Shipped with 8' shielded tray-rated cable for superior mechanical protection in harsh environments.
- Cross-Platform Compatibility: Directly interfaces with BurnerLogix, Flame-Monitor, FlameWorx, and MicroM control systems.
- Serviceable Design: Features a replaceable #4-263-1 Firetron cell to extend the service life of the scanner assembly.
What controls are compatible with the 48PT2-9003?
This infrared scanner is designed for use with Fireye D-Series, Flame-Monitor, FlameWorx, MicroM, and BurnerLogix flame safeguard controls.
Can this scanner be used for both pilot and main flame detection?
Yes, when positioned correctly at the intersection of the pilot and main flame, a single unit can monitor both stages of the firing cycle.
What are the wiring requirements for the 48PT2-9003?
The scanner utilizes a 7-15 VDC operating voltage provided by the control's amplifier; the 8-foot leads can be wired to the S1 and S2 terminals regardless of polarity.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $340.24
-65%$340.24
$119.08Fireye 48PT2-9003 Infrared Scanner
The Fireye 48PT2-9003 is a professional-grade infrared flame scanner designed for industrial and commercial burner applications. This lead sulfide detector is engineered to sense low flicker frequency IR signals from gas, oil, or coal flames, making it a versatile choice for multi-fuel systems. Featuring a 90-degree head and 1/2" NPT mounting collar, the 48PT2-9003 excels in tight installations where a straight-line sight path is obstructed. This specific model comes equipped with 8-foot lead wires rated for Tray Cable - Exposed Run (TC-ER), meeting UL 1569 crush and impact standards. The low-impedance sensor design ensures stable flame detection and is fully compatible with Fireye Flame-Monitor, MicroM, BurnerLogix, and D-Series controls. For technicians maintaining mission-critical equipment, the Fireye 48PT2-9003 provides the thermal stability needed for continuous operation in ambient temperatures ranging from -40??F to 140??F.
Key Benefits- Universal Application: Seamlessly detects infrared signatures from gas, oil, and coal-fired burners.
- Flexible Mounting: The 90-degree angled head allows for precise sighting in compact burner housings.
- Durable Construction: Shipped with 8' shielded tray-rated cable for superior mechanical protection in harsh environments.
- Cross-Platform Compatibility: Directly interfaces with BurnerLogix, Flame-Monitor, FlameWorx, and MicroM control systems.
- Serviceable Design: Features a replaceable #4-263-1 Firetron cell to extend the service life of the scanner assembly.
What controls are compatible with the 48PT2-9003?
This infrared scanner is designed for use with Fireye D-Series, Flame-Monitor, FlameWorx, MicroM, and BurnerLogix flame safeguard controls.
Can this scanner be used for both pilot and main flame detection?
Yes, when positioned correctly at the intersection of the pilot and main flame, a single unit can monitor both stages of the firing cycle.
What are the wiring requirements for the 48PT2-9003?
The scanner utilizes a 7-15 VDC operating voltage provided by the control's amplifier; the 8-foot leads can be wired to the S1 and S2 terminals regardless of polarity.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
