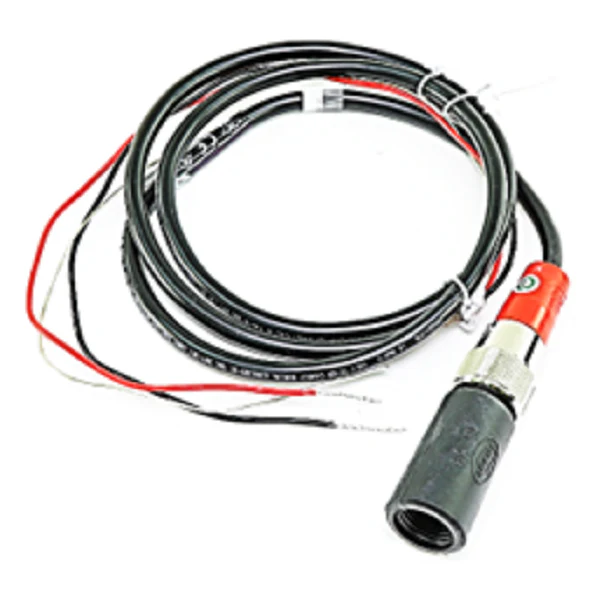

Fireye 48PT2-1007 Infrared Scanner
The Fireye 48PT2-1007 is a high-sensitivity infrared flame scanner designed for industrial and commercial burner applications. This straight head IR sensor features a 4-foot flexible lead, making it ideal for monitoring oil and gas flames where a clear line of sight is essential but space is restricted. Engineered for use with Flame-Monitor and MicroM control systems, the 48PT2-1007 provides a reliable flame signal by detecting infrared radiation in the 700 to 2500 nanometer range. Its heavy-duty construction ensures stable performance in high-ambient temperature environments, effectively filtering out background radiation from hot refractory surfaces. For contractors performing burner controls maintenance, this scanner offers a seamless 1/2" NPT mounting interface. This sensor is a critical component for ensuring proper flame detection and integration with Fireye primary safety controls, maintaining rigorous safety standards in complex mechanical rooms and boiler plants.
Key Benefits- Compatible with Fireye 48PT2 lead sulfide circuitry for precise signal processing.
- Equipped with a 4-foot shielded cable to minimize electromagnetic interference.
- Ruggedized straight head design allows for easy installation in standard sight pipes.
- Effectively differentiates between burner flame and hot combustion chamber walls.
- Designed for long-term stability in high-vibration industrial heating environments.
How do I test the signal strength of the Fireye 48PT2-1007?
Use a high-impedance digital multimeter to measure the DC voltage at the flame signal test jacks on the compatible Fireye amplifier. A steady reading within the manufacturer's specified range indicates proper scanner alignment and sensor health.
Can the 4-foot lead be extended in the field?
While possible with proper shielding and conduit, it is recommended to use the factory-integrated 48-inch lead to maintain signal integrity and prevent nuisance shutdowns caused by electrical noise.
What causes a weak signal on a 48PT2 scanner?
Common issues include soot buildup on the lens, improper alignment with the flame envelope, or excessive heat at the scanner head. Ensure the sight pipe is clear and cooling air is utilized if ambient temperatures exceed 140??F.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
