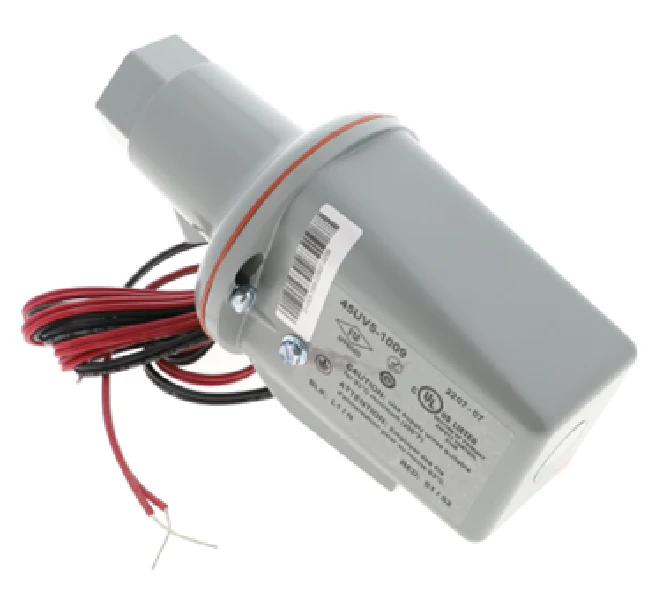

Fireye 45UV5-1009 Scanner
The Fireye 45UV5-1009 is a high-sensitivity UV self-check scanner engineered for continuous-duty industrial applications. Designed for use with Flame-Monitor and MicroM control systems, this ultraviolet flame detector features an internal shutter mechanism that performs a mechanical check of the electronic components and UV tube every 10 seconds. This self-checking flame scanner eliminates the need for manual cycling in 24/7 burner operations, ensuring fail-safe performance and detecting flame signal failures instantly. With a 1-inch NPT mounting and an 8-foot shielded cable, it is built to withstand high-vibration and high-temperature environments typical of industrial boilers and process heaters. By monitoring the narrow UV spectrum of gas and oil flames, it provides superior flame discrimination, preventing false positives from hot refractory or background infrared radiation. Integration into the Fireye 45UV5 system ensures reliable flame supervision for contractors requiring precise combustion control and safety compliance on heavy-duty thermal platforms.
Key Benefits- Continuous Self-Checking: Internal mechanical shutter cycles regularly to verify the integrity of the UV sensing tube and electronic circuitry.
- Rugged Housing: Built for demanding boiler room environments, resisting electromagnetic interference and physical vibration.
- High Discrimination: Specifically tuned for ultraviolet radiation (185 to 260 nanometers), effectively ignoring infrared from hot brickwork.
- Direct Compatibility: Seamlessly interfaces with Fireye Flame-Monitor, MicroM, and D-Series controllers for standard industrial retrofits.
- Ease of Installation: Standard 1-inch NPT pipe thread allows for quick mounting on sight pipes with secure swivel options.
What is the purpose of the self-check shutter in the Fireye 45UV5-1009?
The shutter allows the scanner to verify it can still detect the absence of a flame, a requirement for burners that operate continuously for more than 24 hours without a shutdown.
Can I use the 45UV5-1009 scanner on a coal-fired burner?
While highly effective for gas and oil flames, UV scanners can be obscured by heavy coal dust or smoke; in those specific applications, an infrared or integrated multispectral scanner may be required for optimal signal strength.
How do I clean the lens of a Fireye UV scanner?
Ensure the sight pipe is clear of debris and use a soft, non-abrasive cloth with a glass cleaner to maintain optical clarity for the UV tube, ensuring maximum signal voltage at the controller.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,919.47
-65%$1,919.47
$671.81Fireye 45UV5-1009 Scanner
