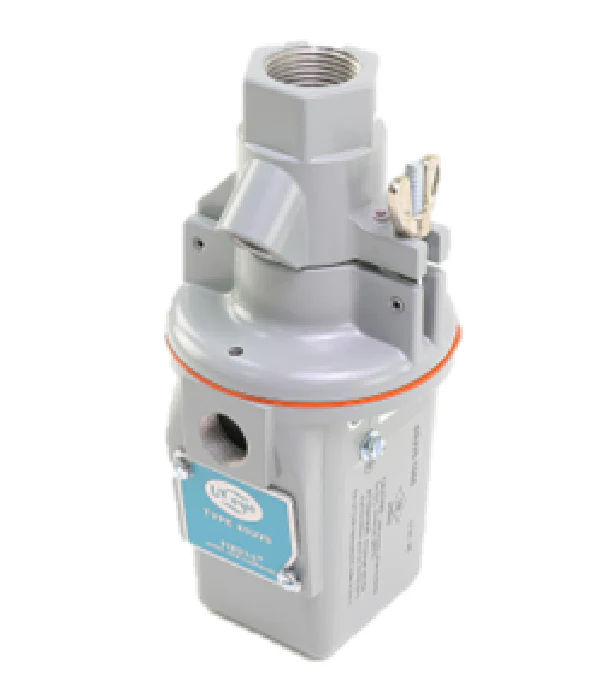

Fireye 45UV5-1000 Scanner
The Fireye 45UV5-1000 is a high-sensitivity UV flame scanner specifically engineered for continuous-duty industrial and commercial burners. Utilizing a self-checking ultraviolet sensor, this unit performs a mechanical shutter test every four seconds to ensure the integrity of the electronics and the UV tube itself. Designed for integration with Flame-Monitor and D-Series primary safety controls, it effectively detects ultraviolet radiation from oil and gas flames while ignoring auxiliary background radiation or refractory glow. The 1-inch NPT mounting flange and NEMA 4X rated housing provide the rugged durability required for high-ambient temperature environments near the burner front. This self-check scanner is essential for systems requiring a supervised pilot and main flame, ensuring immediate flame failure response and preventing hazardous fuel accumulation. Its non-polarized lead wires simplify field installation into existing Fireye flame safeguard systems.
Key Benefits for Technicians:- Fail-Safe Operation: Integrated mechanical shutter provides continuous UV self-check monitoring for maximum safety in multi-burner configurations.
- High Sensitivity: Optimized for detecting low-intensity ultraviolet emissions from clean-burning fuels like natural gas.
- Rugged Construction: Cast aluminum housing is sealed to NEMA 4X standards, protecting internal components from moisture and dust.
- Universal Mounting: Features a standard 1-inch NPT female thread for direct attachment to sight pipes.
- Compatibility: Direct interface with Fireye 70D40, 70D41, and FLAME-MONITOR amplifiers without additional signal conditioning.
How do I troubleshoot frequent shutter errors on the 45UV5?
Ensure the scanner is correctly aligned with the combustion zone and that the sight pipe is clear of obstructions. High ambient temperatures exceeding 200??F at the scanner can cause shutter binding; in these cases, an insulating heat shield or cooling air is required.
Can the 45UV5-1000 be used on coal flames?
While UV scanners are highly sensitive, coal flames often produce high levels of fly ash that can obscure the UV signal. In these applications, it is critical to use clean, dry reference air to keep the quartz lens clear of debris.
Does the scanner require specific wiring polarity?
No, the 45UV5-1000 uses non-polarized leads, though we recommend maintaining consistent color-coding at the terminal base to assist with future diagnostic checks.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $9,103.52
-65%$9,103.52
$3,186.23Fireye 45UV5-1000 Scanner
The Fireye 45UV5-1000 is a high-sensitivity UV flame scanner specifically engineered for continuous-duty industrial and commercial burners. Utilizing a self-checking ultraviolet sensor, this unit performs a mechanical shutter test every four seconds to ensure the integrity of the electronics and the UV tube itself. Designed for integration with Flame-Monitor and D-Series primary safety controls, it effectively detects ultraviolet radiation from oil and gas flames while ignoring auxiliary background radiation or refractory glow. The 1-inch NPT mounting flange and NEMA 4X rated housing provide the rugged durability required for high-ambient temperature environments near the burner front. This self-check scanner is essential for systems requiring a supervised pilot and main flame, ensuring immediate flame failure response and preventing hazardous fuel accumulation. Its non-polarized lead wires simplify field installation into existing Fireye flame safeguard systems.
Key Benefits for Technicians:- Fail-Safe Operation: Integrated mechanical shutter provides continuous UV self-check monitoring for maximum safety in multi-burner configurations.
- High Sensitivity: Optimized for detecting low-intensity ultraviolet emissions from clean-burning fuels like natural gas.
- Rugged Construction: Cast aluminum housing is sealed to NEMA 4X standards, protecting internal components from moisture and dust.
- Universal Mounting: Features a standard 1-inch NPT female thread for direct attachment to sight pipes.
- Compatibility: Direct interface with Fireye 70D40, 70D41, and FLAME-MONITOR amplifiers without additional signal conditioning.
How do I troubleshoot frequent shutter errors on the 45UV5?
Ensure the scanner is correctly aligned with the combustion zone and that the sight pipe is clear of obstructions. High ambient temperatures exceeding 200??F at the scanner can cause shutter binding; in these cases, an insulating heat shield or cooling air is required.
Can the 45UV5-1000 be used on coal flames?
While UV scanners are highly sensitive, coal flames often produce high levels of fly ash that can obscure the UV signal. In these applications, it is critical to use clean, dry reference air to keep the quartz lens clear of debris.
Does the scanner require specific wiring polarity?
No, the 45UV5-1000 uses non-polarized leads, though we recommend maintaining consistent color-coding at the terminal base to assist with future diagnostic checks.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
