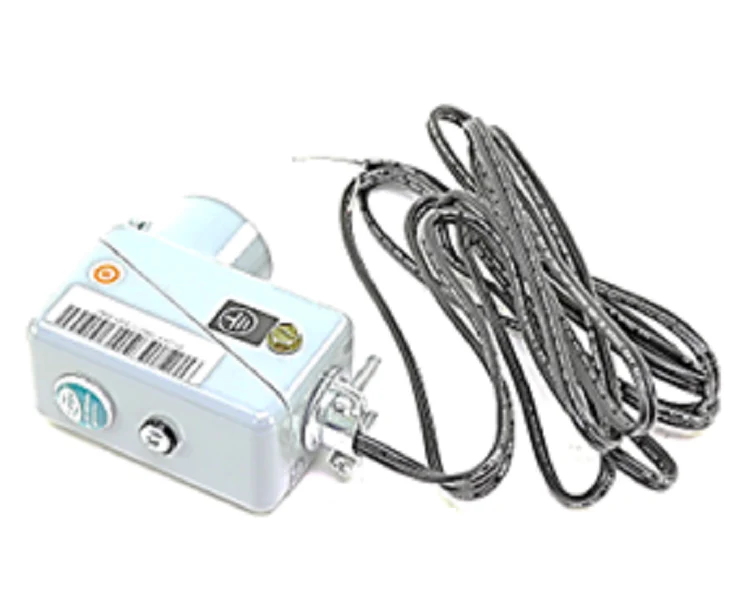

Fireye 45UV3-1050 Scanner
The Fireye 45UV3-1050 Scanner is a heavy-duty ultraviolet flame scanner designed for dependable flame monitoring in industrial and commercial burner applications. This non-self-checking UV scanner features a rugged die-cast aluminum housing and is specifically engineered to detect the ultraviolet radiation emitted by fossil fuel flames, including gas and oil. The 45UV3-1050 utilizes a 4-314-1 UV tube that is vertically oriented to maximize sensitivity and signal strength. This unit is designed for a standard 3/4 inch sleeve and setscrew mount, making it a direct fit for many existing sight pipes without requiring complex adapters. It is equipped with 72-inch (1830mm) unshielded lead wires, which must be installed in flexible armor or metal shielding to maintain signal integrity. Rated for temperatures up to 200??F (94??C), this scanner is a core component for Fireye MicroM, BurnerLogix, and Flame-Monitor safeguard systems, ensuring precise flame detection in the most demanding combustion environments.
Key Benefits- Enhanced Sensitivity: Vertical 4-314-1 UV tube alignment provides a superior field of view and faster flame response.
- Field Maintainable: Features a replaceable UV tube, allowing for cost-effective maintenance without replacing the entire scanner housing.
- Industrial Durability: Rugged cast housing is built to withstand high-vibration and high-temperature environments common in boiler rooms.
- Broad Compatibility: Seamlessly integrates with Fireye flame safeguard controls using MEUV1 or MEUV4 amplifier modules.
What is the proper mounting procedure for the 45UV3-1050?
This scanner mounts directly onto a 3/4-inch NPT pipe using the integrated sleeve and setscrew. Ensure the sight pipe is clear of obstructions and aimed at the leading edge of the flame for optimal signal.
Can this scanner be used for continuous firing operations?
As a non-self-checking scanner, the Fireye 45UV3-1050 is intended for burners that cycle at least once every 24 hours. For continuous processes, a self-checking model like the 45UV5 is typically required.
How do I test the flame signal strength?
Technicians can measure the signal intensity at the test jacks on the associated Fireye amplifier. A stable reading within the manufacturer's specified VDC range ensures the scanner is positioned correctly and the tube is functioning at peak performance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
