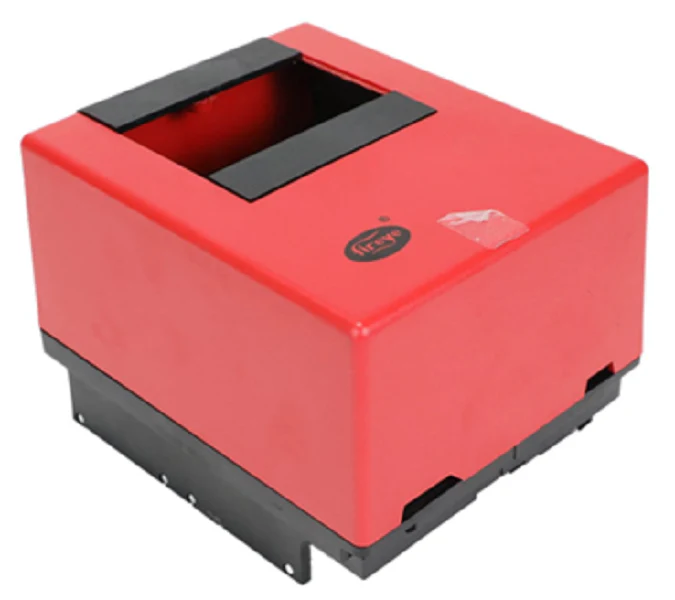

Fireye 25SU3-5166D Amplifier
The Fireye 25SU3-5166D Amplifier is a high-discrimination flame signal amplifier designed for integration with Type 25SU3 Flame-Monitor systems. This dual-voltage component operates on 120/230V AC, providing the critical signal processing required to distinguish between target flames and background radiation in multi-burner environments. Engineered for maximum reliability, the 5166D model features high-discrimination circuitry that eliminates "nuisance tripping" by accurately filtering out interference from adjacent burners. The internal "Dis" (Disconnect) feature ensures safety protocols are maintained during signal loss. As a drop-in replacement for standard Industrial Flame Safeguard applications, it facilitates precise flame monitoring for ultraviolet, infrared, or flame rod sensors. It is essential for contractors maintaining Burner Management Systems (BMS) to ensure this amplifier is seated correctly within the chassis to maintain consistent electrical contact and signal integrity during high-demand cycles.
Product Features and Benefits- Dual-Voltage Versatility: Compatible with both 120V and 230V power supplies, simplifying inventory for field technicians.
- High Discrimination Sensitivity: Advanced circuitry specifically tuned to ignore background IR/UV interference in complex furnace geometries.
- Rapid Response Time: Engineered to meet strict safety shutoff timing requirements for industrial combustion processes.
- Plug-and-Play Installation: Designed for rapid hot-swapping into existing Fireye rack systems to minimize system downtime.
- Rugged Construction: Built to withstand the thermal stressors and electrical noise typical of commercial boiler rooms.
How do I verify if the 25SU3-5166D is compatible with my existing scanner?
This amplifier is typically paired with Fireye 45UV5, 45RM1, or 45RM2 scanners. Verify the specific spectral response of your scanner to ensure it aligns with the 5166D?ÇÖs discrimination logic.
What causes a "weak signal" reading on a newly installed amplifier?
Check for proper alignment of the scanner, ensure the sight pipe is clear of debris, and verify that the 120/230V jumper settings match your control circuit voltage.
Can this unit replace an older non-high-discrimination amplifier?
Yes, the 5166D can replace standard amplifiers to improve signal stability in environments where "flame flickers" or multi-burner interference is causing false shutdowns.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $8,633.01
-65%$8,633.01
$3,021.55Fireye 25SU3-5166D Amplifier
