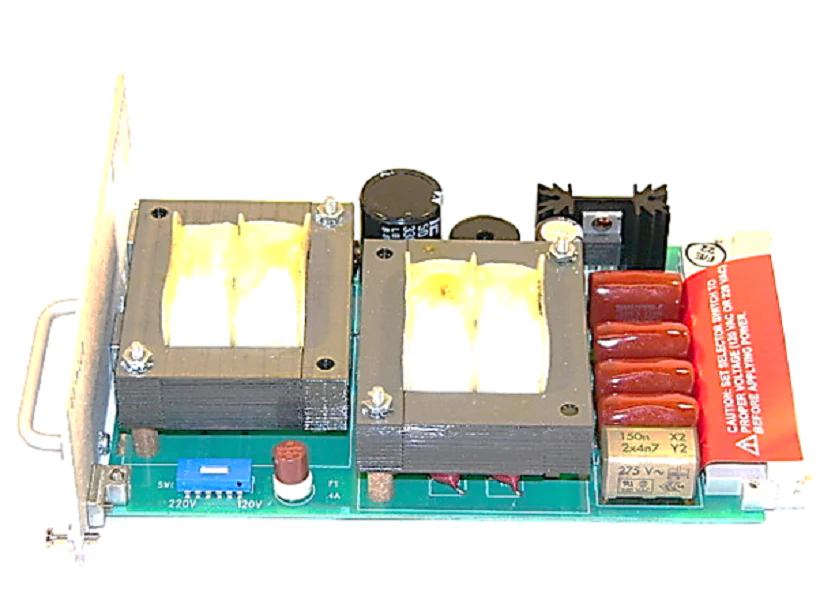

Fireye 19MPS-2000 Power Supply
The Fireye 19MPS-2000 is a high-performance, multi-purpose power supply designed for critical burner management applications. Engineered for seamless integration, this unit supports up to two 25SU3-2000 or 25SU3-2100 amplifiers and can provide consistent voltage for up to four flame scanners, including low-voltage models like the 45RM4 and line-voltage options such as the 45UV5. Technicians can easily adapt the module to site-specific requirements using the blue slide switch (SW1) to select between 120 VAC or 220 VAC input (factory set to 220 VAC). This rack-mounted component fits standard Fireye 19-inch full (60-2471-3), half (60-2471-1), or surface racks (60-2530), ensuring stable DC voltage output for industrial combustion environments. With a maximum current output of 650mA and a clear green LED power indicator, the Fireye 19MPS-2000 power supply delivers the reliability required for industrial flame safeguard systems and complex multi-burner configurations.
Key Benefits- Universal Voltage Compatibility: Switch-selectable 120/220 VAC input allows for flexible deployment across various facility electrical standards.
- High Device Capacity: Powers a combination of two amplifiers and up to four flame scanners simultaneously, reducing the need for multiple power modules.
- Rugged Industrial Design: Capable of operating in temperatures ranging from -4??F to 140??F, making it suitable for demanding boiler room environments.
- Standardized Form Factor: Designed for rapid installation into 10 HP (Horizontal Pitch) slots within Fireye 19-inch rack systems.
Which connectors are required for the Fireye 19MPS-2000?
When installing in a 19-inch full or half rack, you must order either the 60-2481 (screw terminal) or 60-2482 (spade terminal) connector separately, as they are not included with the power supply.
Can the 19MPS-2000 power both high and low voltage scanners at once?
Yes, it is designed to provide supply voltage for up to four line voltage and low voltage scanners in any combination.
What is the factory default voltage setting?
The unit is shipped with the internal SW1 switch set to the 220 VAC position. You must manually toggle it if your application requires 120 VAC.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,586.92
-65%$1,586.92
$555.42Fireye 19MPS-2000 Power Supply
The Fireye 19MPS-2000 is a high-performance, multi-purpose power supply designed for critical burner management applications. Engineered for seamless integration, this unit supports up to two 25SU3-2000 or 25SU3-2100 amplifiers and can provide consistent voltage for up to four flame scanners, including low-voltage models like the 45RM4 and line-voltage options such as the 45UV5. Technicians can easily adapt the module to site-specific requirements using the blue slide switch (SW1) to select between 120 VAC or 220 VAC input (factory set to 220 VAC). This rack-mounted component fits standard Fireye 19-inch full (60-2471-3), half (60-2471-1), or surface racks (60-2530), ensuring stable DC voltage output for industrial combustion environments. With a maximum current output of 650mA and a clear green LED power indicator, the Fireye 19MPS-2000 power supply delivers the reliability required for industrial flame safeguard systems and complex multi-burner configurations.
Key Benefits- Universal Voltage Compatibility: Switch-selectable 120/220 VAC input allows for flexible deployment across various facility electrical standards.
- High Device Capacity: Powers a combination of two amplifiers and up to four flame scanners simultaneously, reducing the need for multiple power modules.
- Rugged Industrial Design: Capable of operating in temperatures ranging from -4??F to 140??F, making it suitable for demanding boiler room environments.
- Standardized Form Factor: Designed for rapid installation into 10 HP (Horizontal Pitch) slots within Fireye 19-inch rack systems.
Which connectors are required for the Fireye 19MPS-2000?
When installing in a 19-inch full or half rack, you must order either the 60-2481 (screw terminal) or 60-2482 (spade terminal) connector separately, as they are not included with the power supply.
Can the 19MPS-2000 power both high and low voltage scanners at once?
Yes, it is designed to provide supply voltage for up to four line voltage and low voltage scanners in any combination.
What is the factory default voltage setting?
The unit is shipped with the internal SW1 switch set to the 220 VAC position. You must manually toggle it if your application requires 120 VAC.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
