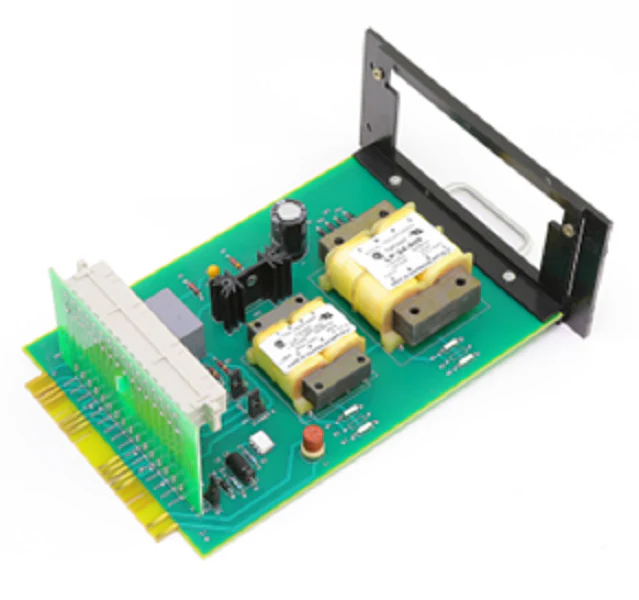

Fireye 192SU3-2120 Adapter
The Fireye 192SU3-2120 is a specialized 19-inch flame safeguard modernization adapter engineered for seamless integration of high-performance flame detection systems. Designed specifically to retrofit the Fireye 25SU3-2100 digital amplifier into legacy 60-1706 and 60-1499 wiring racks, this adapter eliminates the need for extensive rack rewiring or mechanical modifications during field conversions. It serves as a pin-for-pin compatible interface for upgrading older style 25SU3-2000 controls to current digital standards.
Operating on a 120 VAC (+10%/-15%) supply, the 192SU3-2120 contains internal AC-to-DC power conversion to supply the 24 VDC required by the 25SU3-2100. This industrial flame detector adapter is fully compatible with a wide range of scanners, including the 45UV5, 45RM1, 45RM2, 45RM4, 45FS1, and 45UVFS1. Its robust construction supports critical burner management applications with an operating temperature range of -4??F to 140??F (-20??C to 60??C). For contractors and technicians, this unit provides a reliable, plug-in solution for maintaining legacy industrial burner controls while incorporating modern diagnostic capabilities.
Key Benefits- Direct Retrofit Compatibility: Enables simplified upgrades from 25SU3-2000 to 25SU3-2100 amplifiers without modifying 60-1706 racks.
- Integrated Power Supply: Converts 120 VAC input to the stable 24 VDC required for digital flame safeguard operation.
- Extensive Scanner Support: Seamlessly interfaces with Fireye UV and IR scanners, including high and low voltage models like the 45UV5.
- Minimal Downtime: The plug-in design and handle-assisted insertion facilitate rapid field replacement and system commissioning.
Which wiring racks are compatible with the 192SU3-2120?
This adapter is specifically designed for the Fireye 60-1706 and 60-1499 racks, as well as European 60E5527 and similar 19-inch mounting frames.
Does this adapter support the older 25SU3-4163 amplifier?
Yes, the 192SU3-2120 is the designated part for converting 25SU3-4163, 25SU3-4167, and 25SU3-4170 series amplifiers to the newer 25SU3-2100 model.
What is the primary function of the internal power circuitry?
The internal circuitry allows the digital 25SU3-2100 control to receive the necessary 24 VDC while utilizing the existing 120 VAC infrastructure of the legacy rack system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
