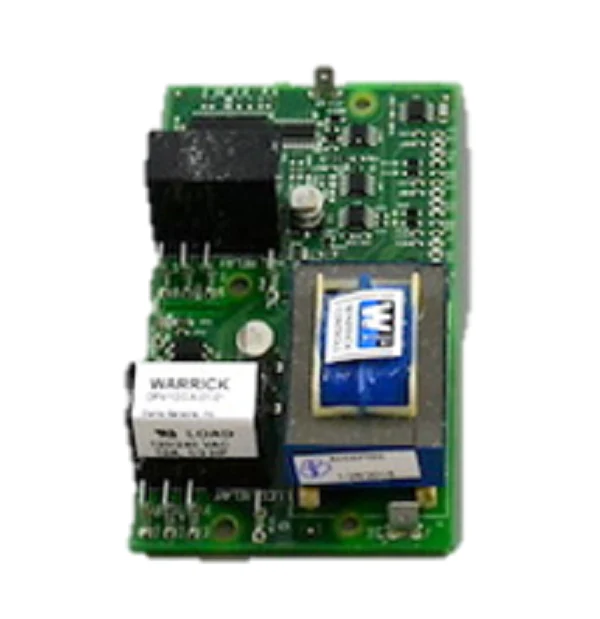

Warrick DFM1D0A0101 Control
The Warrick DFM1D0A0101 is a high-performance Dual Function Control designed for demanding HVACR and industrial liquid level applications. This open-board conductive level controller utilizes a 26k Ohm-cm sensitivity threshold, making it ideal for monitoring tap water and mildly corrosive liquids. Engineered for versatility, the DFM series functions as both a pump up/pump down controller and a low-water cutoff, providing critical protection for boiler systems and storage tanks. This unit features a single-pole double-throw (SPDT) relay, allowing for seamless integration with external alarms or contactors. As a DIN-rail or standoff mounted control, it simplifies installation in compact electrical enclosures. Its solid-state design eliminates the mechanical failures associated with traditional float switches, ensuring reliable point-level detection and preventing short-cycling in high-demand environments. Contractors trust the DFM1D0A0101 for its precise probe-based liquid level sensing and robust field performance.
- Dual-Function Logic: Configurable for both differential level control and single-level detection.
- 26k Ohm Sensitivity: Optimized for standard conductivity levels, ensuring accurate electrode sensing without false trips.
- Open-Board Design: Allows for flexible mounting configurations and easy access to terminal blocks for rapid field wiring.
- Solid-State Reliability: Maximizes uptime by removing moving parts from the sensing environment.
- Versatile Compatibility: Integrates easily with Warrick 3G, 3B, and 3E probe fittings for a complete level management solution.
Common Technical Questions
How do I wire the DFM1D0A0101 for a pump-down application?
Connect your high and low probes to the designated terminals. The logic is set by the orientation of the electrode levels; ensure the common probe is submerged deeper than the start/stop probes for continuous conductivity sensing.
Can this control handle high-temperature applications?
While the control board is rated for standard ambient enclosure temperatures, its compatibility with high-temperature environments depends on using the appropriate ceramic-insulated Warrick probes.
What is the maximum distance between the control and the probes?
Signal integrity remains stable over significant distances, provided you use shielded cable to prevent electromagnetic interference (EMI) from parallel power lines.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
