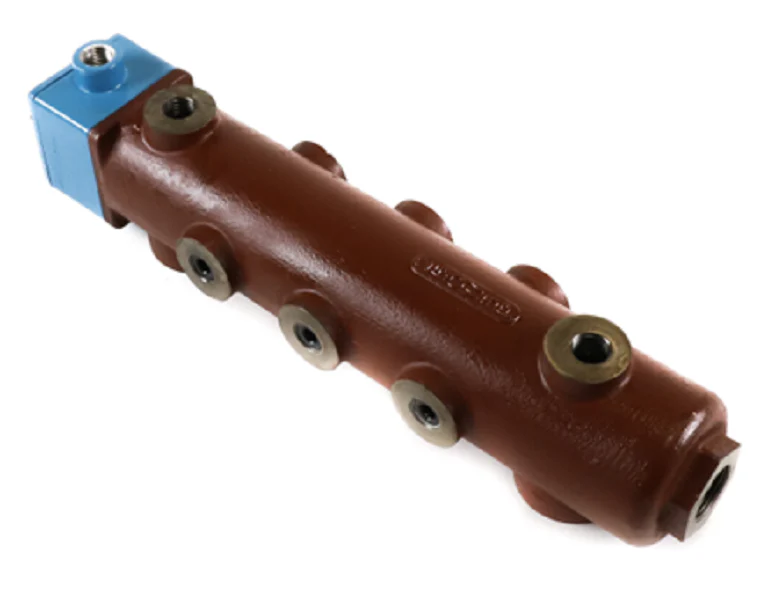

Warrick 3K3A3Z Liquid Level Accessory
Engineered for high-pressure industrial environments, the Warrick 3K3A3Z is a rugged long external mount side chamber electrode probe fitting designed for precise conductive liquid level control. This cast iron side chamber fitting serves as a reliable interface for steam boilers and pressure vessels, featuring three 13-inch 316 stainless steel probes with Teflon insulation to prevent tracking and ensure signal integrity. It is equipped with two 1-inch NPT equalizer connections for stable level matching between the chamber and the vessel, alongside 1/2-inch NPT gauge connections for direct sight glass integration. Built to withstand extreme conditions, this assembly is rated for saturated steam applications up to 250 psig at 406° F. By utilizing conductance-actuated technology, the 3K3A3Z eliminates moving parts, providing technicians with a high-durability solution for critical low-water cutoff, pump activation, and high-level alarm functions across HVACR and process industries.
Key Benefits- Industrial-Grade Durability: Heavy-duty cast iron body material ensures longevity in high-temperature steam and hydronic systems.
- Precision Level Sensing: Triple 316 stainless steel electrodes allow for multi-point control, including pump-on, pump-off, and safety alarms.
- Versatile Integration: Dual 1" NPT equalizer ports and 1/2" NPT gauge tappings simplify piping into existing boiler setups.
- Teflon-Insulated Probes: High-performance insulation prevents false triggers caused by moisture or chemical residue on the probe surface.
- Reliable Performance: No-moving-parts design reduces mechanical failure risk compared to traditional float-based switches.
What is the maximum pressure rating for this Warrick side chamber?
The Warrick 3K3A3Z is rated for a maximum pressure of 250 psig at a temperature of 406° F, making it suitable for high-pressure saturated steam service.
Are the probes adjustable or replaceable?
This fitting includes 13-inch 316 SS probes. While these are typically fixed lengths for the 3K series, they are designed as a complete electrode probe fitting assembly for rapid replacement of existing 3K series cast iron chambers.
Does this unit support tricock tappings?
No, this specific configuration (3K3A3Z) is designed with gauge connections but carries no tricock tappings. Always verify your piping schematic requirements before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
