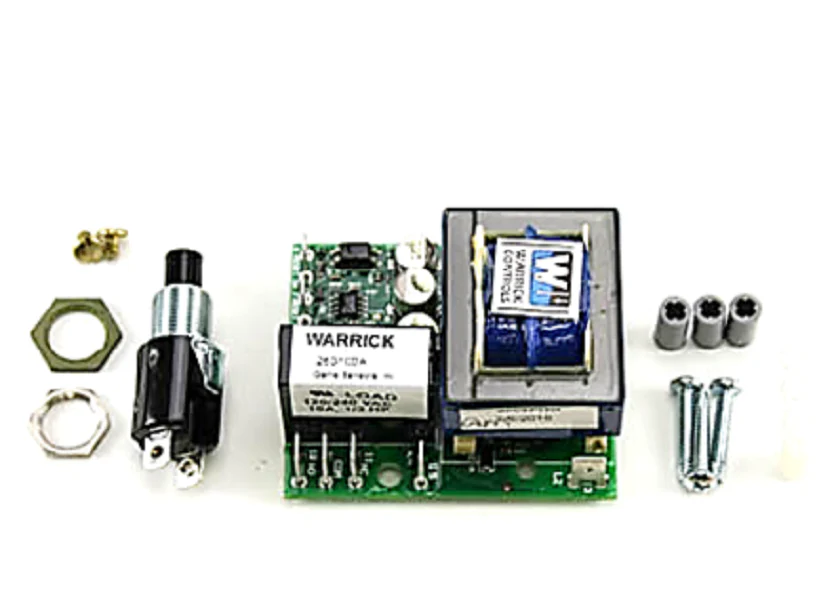

Warrick 26D1C0A Control
The Warrick 26D1C0A is a specialized Series 26 low water cutoff control engineered for precision liquid level monitoring in boilers and water storage systems. Operating on a 120Vac supply voltage, this direct acting control board features a 50,000 ohm sensitivity, making it ideal for applications where probe fouling or foaming might otherwise disrupt signal integrity. The SPDT relay configuration provides both normally open and normally closed contacts, allowing for flexible integration into existing site safety circuits. Designed as an open-board screw mount standoff style unit, it simplifies retrofitting into existing control cabinets. The built-in 3-second time delay prevents rapid cycling due to turbulence, while the manual reset with power outage feature ensures the system remains in a safe state following a utility interruption until technician intervention.
Key Benefits for Contractors
- Enhanced System Safety: The manual reset feature meets strict safety codes for low water cutoff protection, preventing automatic restarts in dry-fire conditions.
- Reliable Operation: A 3-second time delay eliminates nuisance tripping caused by surface surges or splashing inside the vessel.
- Ease of Installation: Standard spade terminals and screw mount standoffs allow for rapid wiring and secure mounting in tight electrical enclosures.
- Integrated Diagnostics: The onboard test feature and remote mount normally closed pushbutton support facilitate quick functional checks during routine maintenance.
Common Questions
How does the manual reset interact with power outages?
The Warrick 26D1C0A is designed to remain in a lockout state after a power loss. Once power is restored, the technician or operator must manually engage the reset button to resume operation, ensuring the water level is verified before the burner or pump restarts.
Can this control be used for high-level alarms?
While frequently used for low water cutoff, the SPDT relay and direct acting mode allow it to be configured for various liquid level control tasks, though sensitivity must be matched to the specific fluid conductivity.
What is the purpose of the 50,000 ohm sensitivity rating?
This high-sensitivity threshold allows the Warrick 26D1C0A to detect liquids with lower conductivity or to maintain a reliable circuit when probe surfaces have accumulated moderate scale or mineral deposits.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
