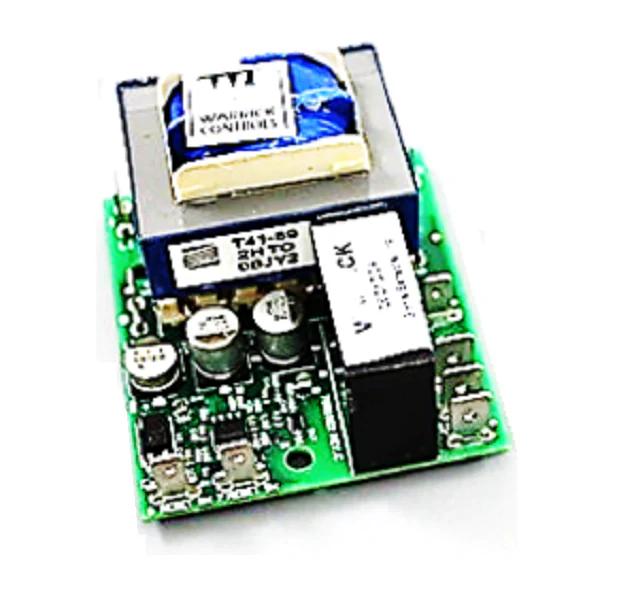

Warrick 26C1D0A Control
The Warrick 26C1D0A is a specialized Series 26 low water cutoff designed for heavy-duty industrial and commercial applications requiring precise liquid level control. Operating on a 120Vac supply voltage, this direct-acting control board features a sensitivity rating of 26,000 ohms, making it ideal for monitoring boiler water levels or storage tank systems. The retrofit standoff style chassis allows for seamless integration into existing control panels without the need for a dedicated enclosure. Its SPDT relay configuration (1 NO/1 NC) ensures versatile wiring options for pump-up or pump-down logic. This conductivity-based level sensor includes a built-in 3-second time delay to mitigate nuisance tripping caused by turbulent surface conditions. Additional field-proven features include a manual reset with a power outage sensing relay, a remote-mount NC pushbutton interface, and spade terminal connections for fast, secure wiring. This board is a reliable solution for technicians needing a field-serviceable HVAC mechanical room control.
Product Features and Benefits- Conductivity Sensing Technology: Provides high-accuracy level detection using a 26k ohm sensitivity threshold for standard water applications.
- Transient Protection: Engineered to withstand voltage spikes common in mechanical rooms, ensuring long-term relay board stability.
- Manual Reset Feature: Enhances safety by requiring human intervention after a low-water event, preventing equipment cycling during dry conditions.
- Direct Acting Operation: Simplifies troubleshooting by maintaining a clear state change when the probe loses contact with the liquid.
- Test Feature Utility: Includes an onboard test function to verify logic sequence and low water cutoff performance without draining the system.
How do you wire the manual reset button for the 26C1D0A?
The manual reset requires a normally closed (NC) pushbutton wired to the designated remote mount terminals. If power is lost and restored, the system stays in the "tripped" state until the operator depresses the button, ensuring the boiler or pump does not restart automatically.
Can this board be used for sewage or high-conductivity liquids?
This specific model is tuned to 26,000 ohms, making it most effective for potable water, boiler feed water, and condensate. For higher-resistance liquids like distilled water, a higher-sensitivity Warrick series board should be selected.
What is the purpose of the 3-second time delay?
The fixed time delay prevents the relay from "chattering" or rapidly switching when water splashes against the probe or when surface ripples occur, protecting the contactors and motors connected to the SPDT relay.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $442.24
-65%$442.24
$154.78Warrick 26C1D0A Control
