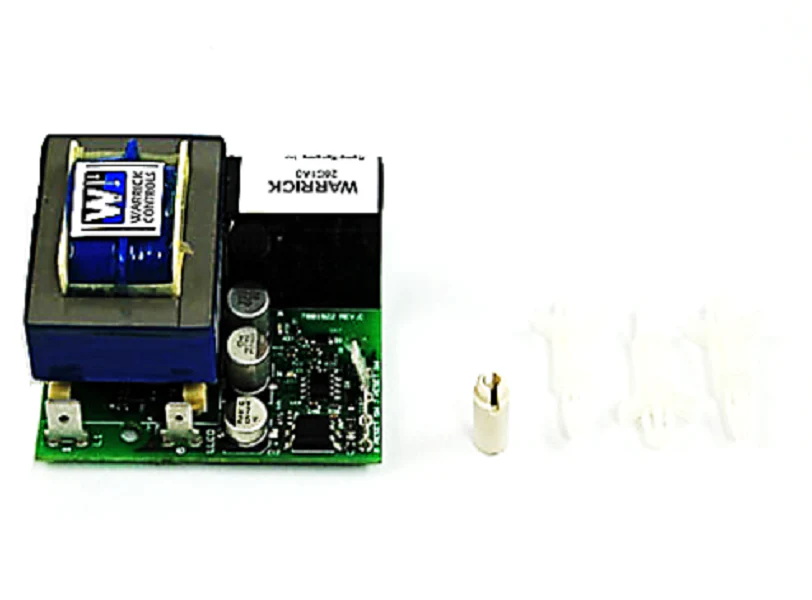

Warrick 26C1A0 Control
The Warrick 26C1A0 Control is a professional-grade liquid level control specifically engineered for high-demand low water cutoff (LWCO) applications. This 120Vac solid-state boiler water level control operates with a 26,000 ohm sensitivity, utilizing a direct acting mode of operation to ensure precise system response. Designed as an open board liquid level control, it features a 1/16" panel standoff style for efficient mounting and low-profile installation within existing electrical enclosures. The SPDT relay configuration provides both normally open and normally closed contacts, allowing for flexible integration into various HVACR safety circuits. To mitigate nuisance tripping caused by surface turbulence or splashing, the unit includes a factory-standard built-in 3 second time delay. Connectivity is managed via spade terminals, facilitating rapid field wiring for service technicians and contractors. This conductive level control board is a reliable solution for maintaining CSD-1 boiler requirements and protecting equipment from dry-run conditions.
Key Benefits- UL 353 Limit Control: Meets essential safety standards for industrial and commercial boiler low-water protection.
- Field-Proven Reliability: The Warrick Series 26 architecture is a flagship standard in the HVACR industry for conductivity probes.
- Direct Acting Efficiency: Ensures the SPDT relay energizes when liquid reaches the probe, providing consistent level detection.
- Compact Integration: The 1/16" standoff design allows for "snap-thru" mounting, saving critical space on control panels.
- Terminal Simplification: 1/4" and 3/16" spade terminals streamline the replacement of legacy controls or new system builds.
What is the purpose of the 26,000 ohm sensitivity rating?
The 26K ohm sensitivity is calibrated for standard tap water or moderately conductive fluids, ensuring the conductive probe accurately detects changes in level without false signaling from high-resistance buildup.
Can this board be used for pump-up or pump-down applications?
The 26C1A0 is primarily designed for low water cutoff. While high-level alarms are possible, technicians typically utilize the Series 16 or 26 specialized modules for complex differential level control or pumping sequences.
How does the 3-second time delay benefit the system?
The built-in delay prevents the contacts from "chattering" or cycling the burner/pump due to momentary liquid surges or bubbles, extending the life of your mechanical components and reducing boiler control wear.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $302.26
-65%$302.26
$105.79Warrick 26C1A0 Control
The Warrick 26C1A0 Control is a professional-grade liquid level control specifically engineered for high-demand low water cutoff (LWCO) applications. This 120Vac solid-state boiler water level control operates with a 26,000 ohm sensitivity, utilizing a direct acting mode of operation to ensure precise system response. Designed as an open board liquid level control, it features a 1/16" panel standoff style for efficient mounting and low-profile installation within existing electrical enclosures. The SPDT relay configuration provides both normally open and normally closed contacts, allowing for flexible integration into various HVACR safety circuits. To mitigate nuisance tripping caused by surface turbulence or splashing, the unit includes a factory-standard built-in 3 second time delay. Connectivity is managed via spade terminals, facilitating rapid field wiring for service technicians and contractors. This conductive level control board is a reliable solution for maintaining CSD-1 boiler requirements and protecting equipment from dry-run conditions.
Key Benefits- UL 353 Limit Control: Meets essential safety standards for industrial and commercial boiler low-water protection.
- Field-Proven Reliability: The Warrick Series 26 architecture is a flagship standard in the HVACR industry for conductivity probes.
- Direct Acting Efficiency: Ensures the SPDT relay energizes when liquid reaches the probe, providing consistent level detection.
- Compact Integration: The 1/16" standoff design allows for "snap-thru" mounting, saving critical space on control panels.
- Terminal Simplification: 1/4" and 3/16" spade terminals streamline the replacement of legacy controls or new system builds.
What is the purpose of the 26,000 ohm sensitivity rating?
The 26K ohm sensitivity is calibrated for standard tap water or moderately conductive fluids, ensuring the conductive probe accurately detects changes in level without false signaling from high-resistance buildup.
Can this board be used for pump-up or pump-down applications?
The 26C1A0 is primarily designed for low water cutoff. While high-level alarms are possible, technicians typically utilize the Series 16 or 26 specialized modules for complex differential level control or pumping sequences.
How does the 3-second time delay benefit the system?
The built-in delay prevents the contacts from "chattering" or cycling the burner/pump due to momentary liquid surges or bubbles, extending the life of your mechanical components and reducing boiler control wear.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
