Warrick 16VMA1A0 Control

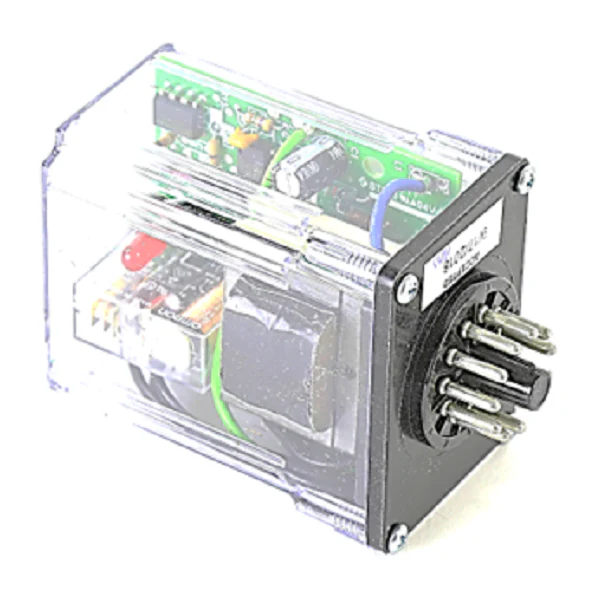

The Warrick 16VMA1A0 is a precision-engineered liquid level control designed for demanding industrial and HVACR fluid management systems. Operating on a 120VAC supply voltage, this 16VM series conductivity controller utilizes a 4,700 ohm direct acting mode of operation, ensuring reliable relay activation when the electrolytic liquid makes contact with the probes. The module features an 11-pin octal socket plug-in design, allowing for rapid field replacement and streamlined installation in control panels without extensive rewiring. With field selectable sensitivity, technicians can fine-tune the device to match the specific conductivity of the medium, preventing false trips caused by foam or turbulence. The integrated SPDT relay (1 NO/1 NC) provides versatile switching logic for pump down control or high-level alarm signaling, making it a staple for boiler feed, condensate return, and sump management applications.
Key Benefits for Contractors- Direct Acting Operation: Ensures the load is energized when the liquid level reaches the probe, critical for overflow protection.
- Plug-in Versatility: The octal socket style module simplifies maintenance cycles and reduces downtime during component swaps.
- Adjustable Sensitivity: Field-tunable parameters allow for precise performance across various industrial liquid level chemical compositions.
- Robust SPDT Contact: Provides flexible 1 N.O. and 1 N.C. configuration to handle diverse automation and control sequences.
How do I wire the Warrick 16VMA1A0 for pump down vs pump up?
For pump down, use the Normally Open contacts to energize the pump when the high level is reached. For pump up, use the Normally Closed contacts to activate the fill mechanism when the probe loses contact with the liquid.
Can I use this controller with non-conductive liquids?
No, Warrick conductivity controls require a conductive medium (such as water or certain chemicals) to complete the electrical circuit between probes.
What is the purpose of the 4,700 ohm sensitivity rating?
This resistance threshold defines the point at which the electronic level control detects the presence of liquid; ensuring it is matched to the fluid's conductivity prevents erratic relay behavior.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $580.90
-65%$580.90
$203.31Warrick 16VMA1A0 Control
The Warrick 16VMA1A0 is a precision-engineered liquid level control designed for demanding industrial and HVACR fluid management systems. Operating on a 120VAC supply voltage, this 16VM series conductivity controller utilizes a 4,700 ohm direct acting mode of operation, ensuring reliable relay activation when the electrolytic liquid makes contact with the probes. The module features an 11-pin octal socket plug-in design, allowing for rapid field replacement and streamlined installation in control panels without extensive rewiring. With field selectable sensitivity, technicians can fine-tune the device to match the specific conductivity of the medium, preventing false trips caused by foam or turbulence. The integrated SPDT relay (1 NO/1 NC) provides versatile switching logic for pump down control or high-level alarm signaling, making it a staple for boiler feed, condensate return, and sump management applications.
Key Benefits for Contractors- Direct Acting Operation: Ensures the load is energized when the liquid level reaches the probe, critical for overflow protection.
- Plug-in Versatility: The octal socket style module simplifies maintenance cycles and reduces downtime during component swaps.
- Adjustable Sensitivity: Field-tunable parameters allow for precise performance across various industrial liquid level chemical compositions.
- Robust SPDT Contact: Provides flexible 1 N.O. and 1 N.C. configuration to handle diverse automation and control sequences.
How do I wire the Warrick 16VMA1A0 for pump down vs pump up?
For pump down, use the Normally Open contacts to energize the pump when the high level is reached. For pump up, use the Normally Closed contacts to activate the fill mechanism when the probe loses contact with the liquid.
Can I use this controller with non-conductive liquids?
No, Warrick conductivity controls require a conductive medium (such as water or certain chemicals) to complete the electrical circuit between probes.
What is the purpose of the 4,700 ohm sensitivity rating?
This resistance threshold defines the point at which the electronic level control detects the presence of liquid; ensuring it is matched to the fluid's conductivity prevents erratic relay behavior.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
