Warrick 16MM1B0 Control

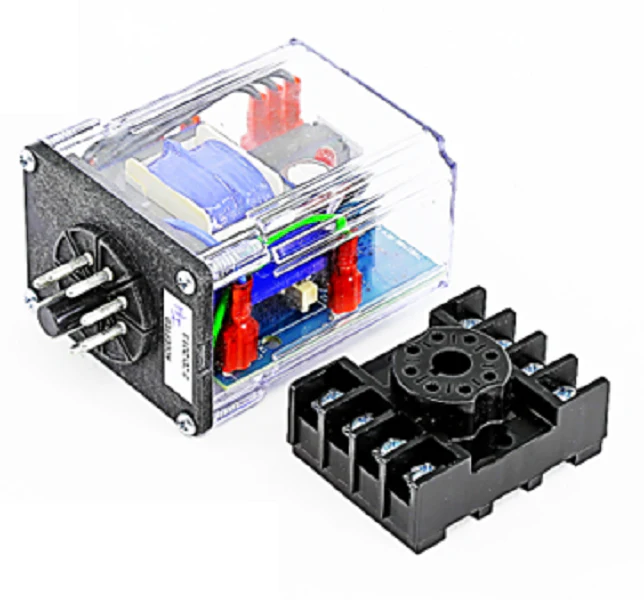

The Warrick 16MM1B0 Control is a versatile liquid level control designed for demanding industrial and HVACR environments. This general purpose plug-in module features an inverse acting mode of operation, specifically engineered for pump-up or high-level fill applications where the relay remains energized while the probe is dry. Operating on a 120Vac supply voltage, the 16M series utilizes a secondary 12 VAC RMS voltage at the probes, reducing shock hazard and electrode plating. This unit is factory-set with a 26,000 ohm sensitivity, making it suitable for a wide range of conductive liquids including water and wastewater. The SPDT (1 Normally Open/1 Normally Closed) relay supports 10A resistive loads at 120/240 VAC, providing reliable switching for pumps, valves, and alarms. Designed for rapid deployment, the 8 Pin DIN socket style allows for secure, vibration-resistant mounting with standard screw connector sockets without the need for an additional enclosure.
Key Benefits:- Industrial Reliability: Solid-state microprocessor-based design eliminates moving parts in the sensing circuit to prevent failure.
- Optimized for Fill Cycles: The inverse acting mode ensures the relay de-energizes when the liquid reaches the high probe, ideal for automated tank filling.
- Compact DIN Configuration: Integrated 8 Pin DIN socket style simplifies panel installation and allows for easy module replacement.
- Heavy-Duty Contacts: 10 Amp SPDT relay provides universal compatibility for high-inrush motor and valve control signals.
- Broad Operating Range: Engineered to function in harsh temperatures ranging from -40°F to 150°F.
How do I wire the Warrick 16MM1B0 for a low-level alarm?
While the inverse mode is typically used for filling, for a low-level alarm you would wire your load to the normally closed (NC) contacts. This ensures the circuit closes and stays active when the probe loses contact with the liquid.
What is the maximum distance for probe wiring?
For 26,000 ohm sensitivity, the maximum probe wire distance is approximately 2,200 feet using standard 14 or 16 AWG MTW or THHN copper wire. Exceeding this distance can cause phantom tripping due to line capacitance.
Can I use this control in a metal tank without a reference probe?
Yes, in metallic tank applications, you can use the tank wall itself as the reference ground by connecting it to the 'G' terminal on the 8 pin DIN socket.
