Warrick 16MM1A0 Control

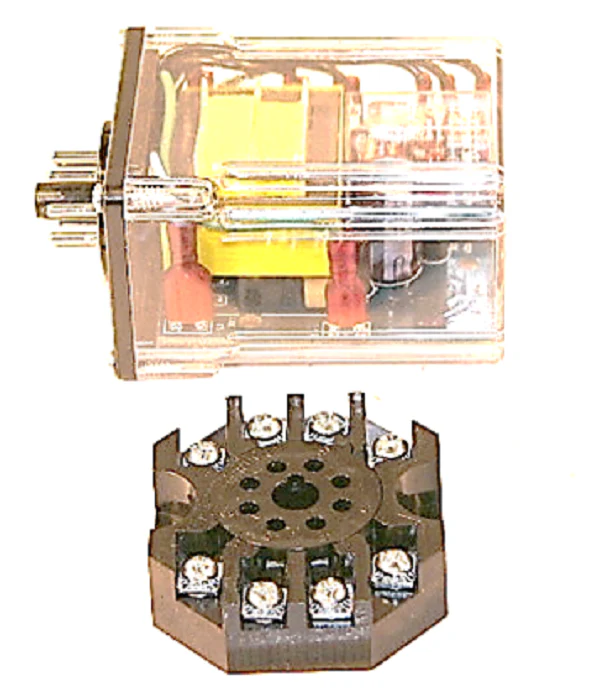

The Warrick 16MM1A0 Control is a rugged, solid-state liquid level control module engineered for high-reliability industrial applications. This 120Vac supply voltage unit operates with 26,000 ohm sensitivity, making it ideal for monitoring condensate, boiler feed, or sewage where medium conductivity liquids are present. Utilizing an Inverse Acting mode of operation, the internal SPDT relay (1 Normally Open/1 Normally Closed) energizes when the probes are dry and de-energizes when the liquid level reaches the high probe. This general purpose plug-in module features a standard 8-pin octal socket style, allowing for rapid field replacement and streamlined panel wiring. The microprocessor-based design ensures precise switching and prevents nuisance tripping in turbulent environments. Designed without a NEMA enclosure, this module integrates seamlessly into existing control panels via screw connector sockets, providing a compact footprint for complex HVACR and hydropneumatic systems.
Key Benefits- Solid-state reliability eliminates moving parts within the control logic to extend service life in high-cycle environments.
- Compact 8-pin octal design fits standard sockets, reducing downtime during routine maintenance or retrofits.
- Inverse mode logic provides a fail-safe approach for pump-down or low-level alarm applications.
- 10A resistive contact rating at 120/240 VAC allows for direct control of small motors or heavy-duty solenoids.
- Microprocessor precision delivers consistent sensitivity at 26K ohms, preventing "chatter" caused by sloshing liquid.
How do I wire the Warrick 16MM1A0 for single-level service?
For single-level service, connect your probes to the "H" (High) and "G" (Reference) terminals. In metallic tanks, the tank wall can often serve as the reference point, provided there is a solid electrical bond.
What causes the relay to "chatter" or trip intermittently?
Intermittent tripping is often caused by voltage noise if probe wires are run in the same conduit as high-voltage lines. Ensure probe wiring is shielded or separated, and verify that the probe tips are clean and free of mineral scale or "bridging" debris.
Can I use this control for extremely pure water?
This specific module is factory-set to 26,000 ohm sensitivity. Extremely pure water or distilled liquids may require a high-sensitivity module (such as the 16HM series) to maintain a reliable conductive circuit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
