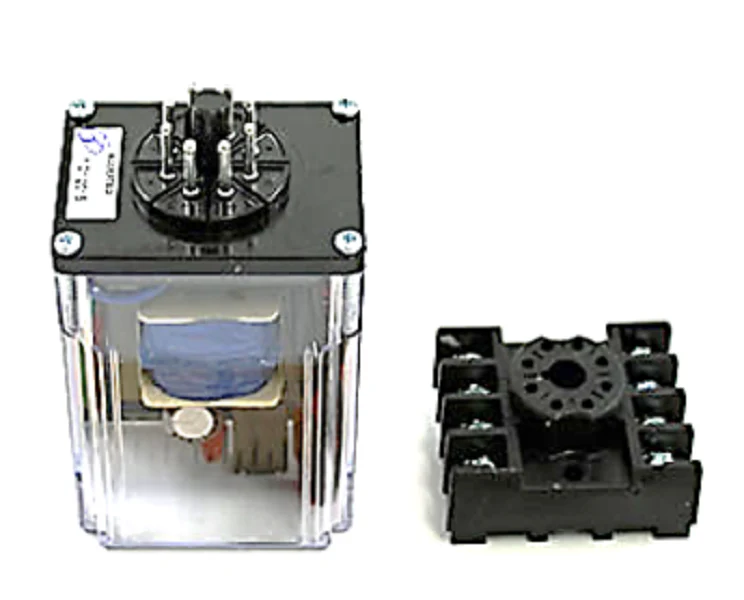

Warrick 16MC1B0 Control
The Warrick 16MC1B0 is a high-performance liquid level control designed for precise conductivity-based sensing in industrial HVACR and process water applications. Operating on 120Vac supply voltage, this dual-channel liquid level relay utilizes a 26,000 ohm sensitivity threshold in a direct acting mode, making it ideal for low-to-moderate resistance fluids. The unit features a Single Pole Double Throw (SPDT) configuration, providing one normally open and one normally closed contact to manage pump-down or high-level alarm circuits effectively. Built as a general purpose plug-in module, it fits a standard 8 pin DIN socket, ensuring rapid field replacement and streamlined installation within control panels. The screw connector socket ensures reliable electrical termination for conductivity probes, maintaining signal integrity in demanding environments. This solid-state liquid level control is a staple for contractors maintaining boiler feed systems, cooling towers, and sump reservoirs where reliable point-level detection is non-negotiable.
Key Benefits for Technicians- Field-Proven Reliability: The Warrick Series 16 platform offers consistent off-on level sensing without moving parts in the tank, reducing mechanical failure points.
- Simplified Integration: The 8 pin plug-in design allows for immediate mounting on 35mm DIN rail or surface mounting using compatible sockets.
- Versatile Signaling: SPDT relay contacts allow simultaneous control of a primary load and a remote status indicator or BMS input.
- Narrow Sensitivity Range: The 26k ohm sensitivity is optimized for standard potable water and condensate applications, preventing nuisance tripping from high-resistance buildup.
How do I wire the Warrick 16MC1B0 for a pump-down application?
To configure for pump-down (drain), the liquid level sensor probes are connected to the direct acting module so the SPDT relay energizes when the liquid reaches the high probe, closing the circuit to the pump motor starter through the normally open contacts.
Can this control be used with any probe electrode?
Yes, this conductive level controller is compatible with all Warrick 3H, 3E, and 3W probe fittings, provided the fluid conductivity matches the 26,000 ohm sensitivity rating of the 16MC1B0.
What is the purpose of the 8-pin DIN socket style?
The 8 pin socket style facilitates modular maintenance. If the plug-in level control requires service, the technician can swap the module in seconds without disturbing the field wiring at the screw connector socket.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $528.28
-65%$528.28
$184.90Warrick 16MC1B0 Control
