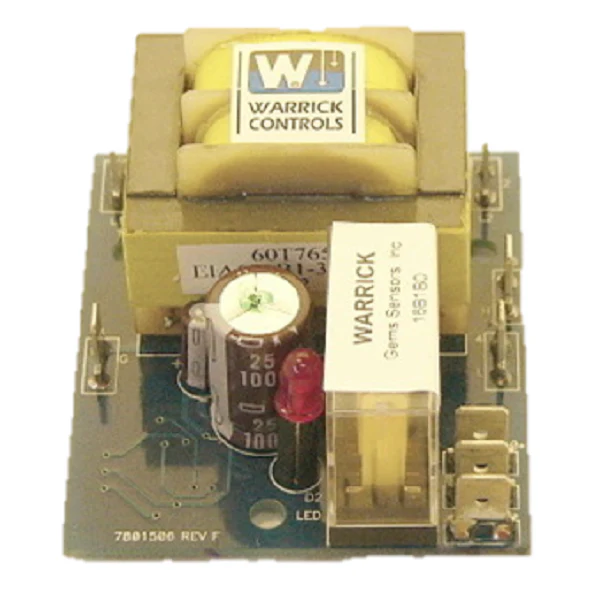

Warrick 16B1B0 Control
The Warrick 16B1B0 is a high-reliability, conductive liquid level control designed for demanding HVAC and industrial process applications. This solid-state control board utilizes 120Vac supply voltage and features a 10,000 ohm sensitivity, making it the industry standard for monitoring natural water and various conductive fluids. Operating in direct acting mode, the onboard SPDT relay (1 NO/1 NC) energizes when the liquid contacts the probe and de-energizes when the level recedes, providing precise "pump down" or high-level alarm functionality.
Engineered for seamless panel integration, the Warrick Series 16 features a 1/8" panel standoff style and an open-board configuration to minimize footprint within existing enclosures. The spade terminals ensure rapid field wiring for technicians, while the microprocessor-based design delivers consistent performance without the mechanical failure risks associated with float switches. This single-level control is essential for boiler feedwater systems, sump pump management, and general reservoir monitoring where accuracy is non-negotiable.
Key Benefits:- Universal HVAC Compatibility: Designed for standard 120V liquid level control applications.
- Rugged Solid-State Construction: No moving parts on the sensing side ensures a long service life in high-cycle environments.
- Precision 10K Sensitivity: Optimized for standard conductivity levels found in municipal water and hydronic systems.
- Modular Integration: The spade terminal layout and 1/8" standoffs allow for easy control board replacement in field panels.
- Can the 16B1B0 be used for pump-up/fill applications? No, this is a direct acting 10K board typically used for "pump down" or drain applications. For "pump up" logic, an inverse acting model (Series 16L) is required.
- What probe distance is supported by the 10,000 ohm sensitivity? This model supports significant wire runs between the board and conductivity probes, though performance depends on the gauge of the field wiring used.
- Does this board require a specific enclosure? This is a general purpose open control board. It must be mounted in a protected UL-rated enclosure or service panel to ensure safety and compliance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $338.21
-65%$338.21
$118.37Warrick 16B1B0 Control
