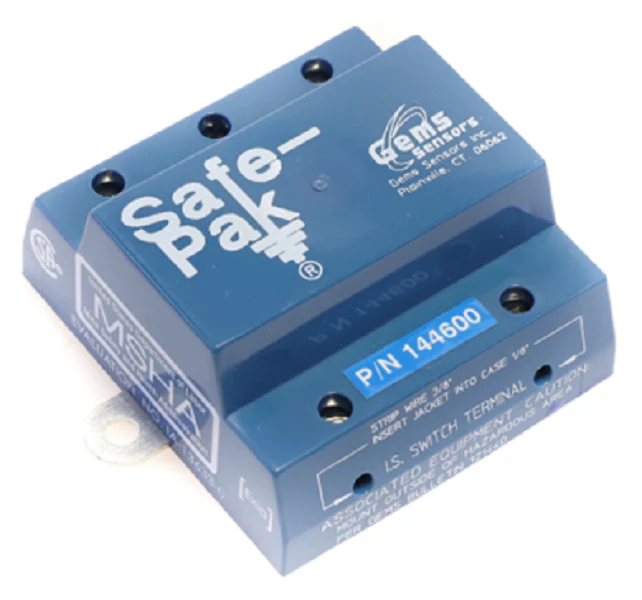

Warrick 144600 Relay
The Warrick 144600 Relay is a specialized Safe-Pak solid-state relay designed for hazardous environments that require intrinsically safe circuitry. This SPST-NO (Single Pole Single Throw, Normally Open) device acts as a reliable interface between hazardous area sensors and non-hazardous area loads. Engineered to limit energy output to levels insufficient to ignite explosive atmospheres, it is commonly utilized in fuel storage, chemical processing, and wastewater lift stations. The Warrick 144600 operates with a low-voltage control circuit, ensuring safe switching of high-voltage loads without the risk of sparking. Its compact, potted design provides superior resistance to vibration and environmental contaminants, making it a staple for contractors maintaining industrial liquid level control systems. This intrinsically safe relay simplifies compliance with NEC requirements for Class I, II, and III, Divisions 1 and 2, providing a robust solution for switching AC or DC loads in sensitive process control applications.
Technical Specifications and Benefits
- Intrinsically Safe Switching: Provides a secure barrier for liquid level sensors and float switches in explosive environments.
- Solid-State Reliability: No moving parts reduces mechanical wear, extending the service life of the Safe-Pak relay.
- Direct Logic Interface: Compatible with low-power signals, allowing for seamless integration with PLCs and automation controllers.
- Versatile Mounting: The small footprint allows for high-density installation within standard NEMA enclosures.
- SPST-NO Configuration: Optimized for fail-safe operations where the circuit must remain open until triggered.
Common Questions
Is the Warrick 144600 compatible with conductive probes?
Yes, this intrinsically safe relay is frequently paired with conductive probes and float switches to monitor levels in hazardous tanks while maintaining electrical isolation.
What is the primary function of a Safe-Pak relay?
The primary function of the Warrick 144600 is to prevent electrical energy from crossing from the non-hazardous side to the hazardous side, preventing ignition in volatile areas.
How do I wire this into an existing control panel?
Professional installation is required following the specific Warrick wiring diagram to ensure the intrinsically safe leads are properly segregated from non-intrinsically safe power lines.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $550.61
-65%$550.61
$192.71Warrick 144600 Relay
