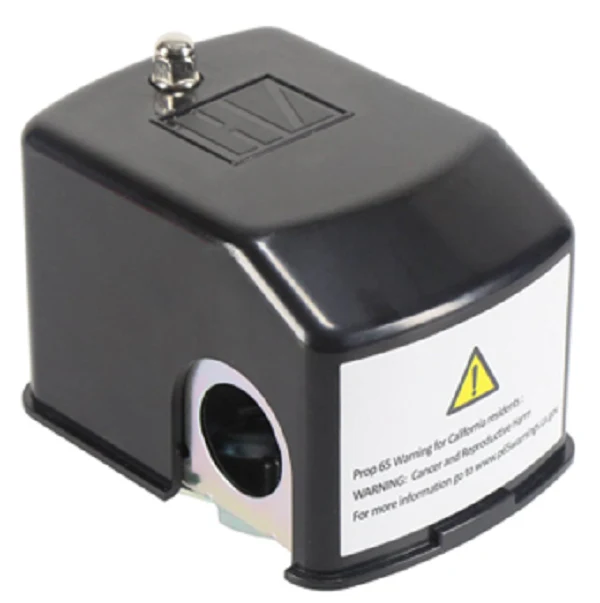

Sta-Rite Pumps U217-1219 Pressure Switch
The Sta-Rite U217-1219 Pressure Switch is a critical control component designed for water system pump automation, specifically calibrated for a 30 PSI cut-in and 50 PSI cut-out differential. This original equipment manufacturer (OEM) part serves as the direct replacement for legacy models U217-1216 and 74782, ensuring seamless mechanical compatibility with Sta-Rite jet pumps and centrifugal systems. Engineered with heavy-duty contacts, the U217-1219 manages the electrical circuit to the motor based on system pressure fluctuations, preventing frequent cycling that leads to motor fatigue. The terminal configuration allows for efficient field wiring, while the 1/4 inch NPT connection ensures a standardized fit. For contractors performing system maintenance or repairs, utilizing this specific 30-50 PSI switch maintains the hydraulic integrity of the pressure tank and distribution lines, providing a reliable 20 PSI operating range for residential and light commercial water applications.
Key Benefits- Direct OEM Compatibility: Engineered specifically to replace outdated U217-1216 and 74782 part numbers without modification.
- Precise Pressure Calibration: Pre-set to 30# on 50# off to maintain optimal line pressure and pump longevity.
- Rugged Construction: Features durable contact points designed to handle the inductive load of high-start torque pump motors.
- Versatile Application: Suitable for use with various well pump pressure switch configurations including shallow and deep well systems.
What is the difference between the U217-1219 and the U217-1216?
The U217-1219 is the updated technical equivalent and direct replacement for the discontinued U217-1216, offering the same 30-50 PSI factory settings and mounting footprint.
Can the pressure settings on this switch be adjusted in the field?
Yes, while factory-set to 30/50 PSI, the range and differential can be fine-tuned using the internal adjustment springs to meet specific site requirements, provided they stay within the pump’s curve.
Will this work with pumps from other manufacturers?
While optimized for Sta-Rite units, this is a standard NEMA type 1 enclosure switch that can be used on any pump requiring a 1/4" NPT connection and 30-50 PSI operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
