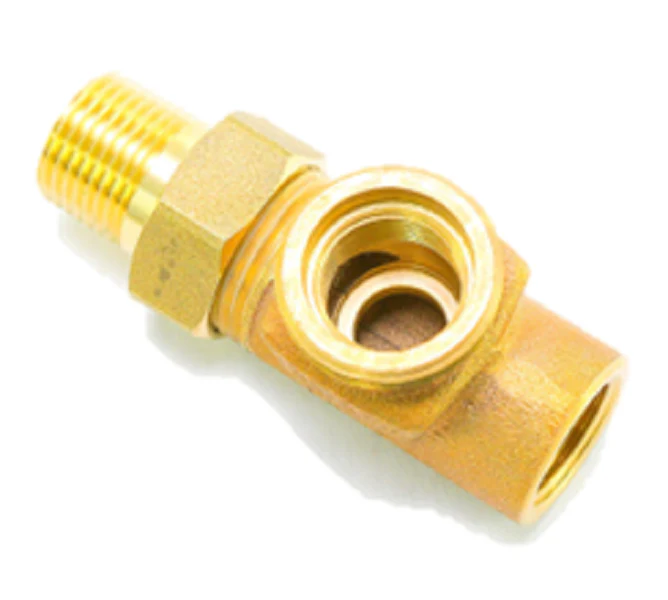

Spartan Valves V241-12N Body
The Spartan Valves V241-12N is a rugged 1/2" 2-way straight union globe valve body engineered for precise terminal unit control. Constructed from low zinc anti-dezincification bronze (alloy C84400), this body is specifically designed to handle hot water, chilled water, and up to 50% glycol mixtures. With an ANSI 250 pressure rating, it supports operating pressures up to 400 PSI at 150°F and remains stable in high-demand hydronic loops. The V241-12N is fully compatible with the entire range of Spartan terminal unit valve actuators, including electric, pneumatic, and thermostatic options, allowing for streamlined field integration. Its "mirror-maker" burnished stainless steel stem and 100:1 rangeability ensure accurate modulating or on/off performance. This 1/2" female NPT inlet and male NPT union outlet configuration simplifies installation in confined spaces like fan coil units and baseboard radiators, while the interchangeable valve cartridge system permits rapid Cv adjustments or maintenance without removing the valve from the line.
Key Benefits- Interchangeable Cartridge System: Swap flow coefficients (Cv) or service the valve internals without breaking pipe connections.
- High-Performance Metallurgy: Low zinc bronze construction prevents dezincification in harsh water conditions for long-term structural integrity.
- Universal Actuator Compatibility: Direct-mount design works with Spartan’s full line of zone valve actuators for maximum application flexibility.
- Superior Stem Seal: Burnished stainless steel stem reduces friction and extends the life of the internal packing.
Is the V241-12N compatible with steam applications?
Standard EP cartridges are for water/glycol; however, the V241-12N body can support low-pressure steam up to 15 PSI when fitted with a steam-rated EV cartridge.
Can I change the flow rate after the valve is installed?
Yes, the V241 series allows technicians to remove the internal cartridge and replace it with a different Cv-rated cartridge from the top of the valve body.
What is the maximum differential pressure for this valve?
The standard close-off is 50 PSI, though this can be exceeded with specific balanced cartridges depending on the actuator torque and noise requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $40.50
-65%$40.50
$14.17Spartan Valves V241-12N Body
The Spartan Valves V241-12N is a rugged 1/2" 2-way straight union globe valve body engineered for precise terminal unit control. Constructed from low zinc anti-dezincification bronze (alloy C84400), this body is specifically designed to handle hot water, chilled water, and up to 50% glycol mixtures. With an ANSI 250 pressure rating, it supports operating pressures up to 400 PSI at 150°F and remains stable in high-demand hydronic loops. The V241-12N is fully compatible with the entire range of Spartan terminal unit valve actuators, including electric, pneumatic, and thermostatic options, allowing for streamlined field integration. Its "mirror-maker" burnished stainless steel stem and 100:1 rangeability ensure accurate modulating or on/off performance. This 1/2" female NPT inlet and male NPT union outlet configuration simplifies installation in confined spaces like fan coil units and baseboard radiators, while the interchangeable valve cartridge system permits rapid Cv adjustments or maintenance without removing the valve from the line.
Key Benefits- Interchangeable Cartridge System: Swap flow coefficients (Cv) or service the valve internals without breaking pipe connections.
- High-Performance Metallurgy: Low zinc bronze construction prevents dezincification in harsh water conditions for long-term structural integrity.
- Universal Actuator Compatibility: Direct-mount design works with Spartan’s full line of zone valve actuators for maximum application flexibility.
- Superior Stem Seal: Burnished stainless steel stem reduces friction and extends the life of the internal packing.
Is the V241-12N compatible with steam applications?
Standard EP cartridges are for water/glycol; however, the V241-12N body can support low-pressure steam up to 15 PSI when fitted with a steam-rated EV cartridge.
Can I change the flow rate after the valve is installed?
Yes, the V241 series allows technicians to remove the internal cartridge and replace it with a different Cv-rated cartridge from the top of the valve body.
What is the maximum differential pressure for this valve?
The standard close-off is 50 PSI, though this can be exceeded with specific balanced cartridges depending on the actuator torque and noise requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Spartan Valves V241-12N is a rugged 1/2" 2-way straight union globe valve body engineered for precise terminal unit control. Constructed from low zinc anti-dezincification bronze (alloy C84400), this body is specifically designed to handle hot water, chilled water, and up to 50% glycol mixtures. With an ANSI 250 pressure rating, it supports operating pressures up to 400 PSI at 150°F and remains stable in high-demand hydronic loops. The V241-12N is fully compatible with the entire range of Spartan terminal unit valve actuators, including electric, pneumatic, and thermostatic options, allowing for streamlined field integration. Its "mirror-maker" burnished stainless steel stem and 100:1 rangeability ensure accurate modulating or on/off performance. This 1/2" female NPT inlet and male NPT union outlet configuration simplifies installation in confined spaces like fan coil units and baseboard radiators, while the interchangeable valve cartridge system permits rapid Cv adjustments or maintenance without removing the valve from the line.
Key Benefits- Interchangeable Cartridge System: Swap flow coefficients (Cv) or service the valve internals without breaking pipe connections.
- High-Performance Metallurgy: Low zinc bronze construction prevents dezincification in harsh water conditions for long-term structural integrity.
- Universal Actuator Compatibility: Direct-mount design works with Spartan’s full line of zone valve actuators for maximum application flexibility.
- Superior Stem Seal: Burnished stainless steel stem reduces friction and extends the life of the internal packing.
Is the V241-12N compatible with steam applications?
Standard EP cartridges are for water/glycol; however, the V241-12N body can support low-pressure steam up to 15 PSI when fitted with a steam-rated EV cartridge.
Can I change the flow rate after the valve is installed?
Yes, the V241 series allows technicians to remove the internal cartridge and replace it with a different Cv-rated cartridge from the top of the valve body.
What is the maximum differential pressure for this valve?
The standard close-off is 50 PSI, though this can be exceeded with specific balanced cartridges depending on the actuator torque and noise requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
