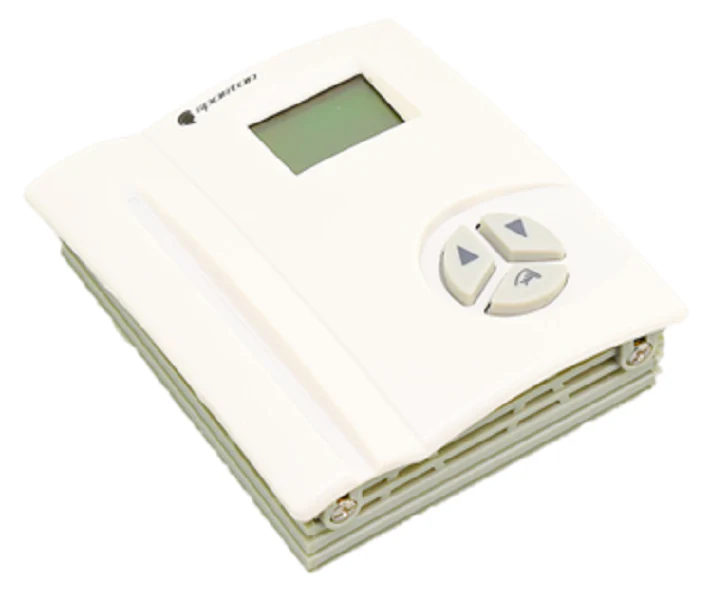

Spartan Valves TE154 Stat
The Spartan Valves TE154 is a professional-grade single output modulating thermostat engineered for high-precision P+I temperature control in industrial and commercial HVACR applications. Specifically built to drive 2-15VDC actuators, this unit serves as a robust direct replacement for Barber Colman TP8101, TP8102, and TP8103 series controllers, ensuring seamless integration into legacy systems. Operating on a 20VDC supply voltage, the TE154 utilizes a 10K NTC thermistor for sensing, with the flexibility to toggle between internal or external remote sensors via on-board dip switches.
Technicians will appreciate the proportional plus integral control loop which eliminates offset and maintains stable setpoints within an operating range of 40-95°F. The clear LCD interface provides real-time status icons for heating (thermometer) and cooling (snowflake) demands, and the non-volatile memory ensures all setpoints are retained during power failures. Designed for versatility, it features selectable °C/°F scales and adjustable response times (10s or 30s) to match specific modulating valve requirements.
Key Benefits- Universal Compatibility: Serves as a technical drop-in for Barber Colman TP8101-116 and similar models, reducing truck stock requirements.
- Precise Modulation: Advanced P+I control logic provides 2-15VDC output for smooth valve and actuator positioning.
- Field Configurable: Internal dip switches allow for easy adjustment of proportional bands and sensor logic without specialized software.
- Energy Efficiency: Integrated economy mode terminals (4 and 5) enable energy-saving setbacks in unoccupied zones.
- Simple Installation: Standard 2x4 electric box mounting with terminal connections for 22 AWG to 14 AWG wiring.
- Can I use a remote sensor with the TE154? Yes, you can connect a 10K Ohm Type 3 NTC thermistor to terminals 7 and 8 and toggle dip switch 3 to "External" for remote sensing.
- How do I switch between heating and cooling modes? Modes are selected via a jumper on terminals 2 and 3; removing the jumper defaults to heating mode, while installing it enables cooling.
- What supply voltage is required? This unit is designed to operate on a 20VDC power source, drawing approximately 13mA.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
