Schneider Electric (Viconics) VT7200C5031B Control

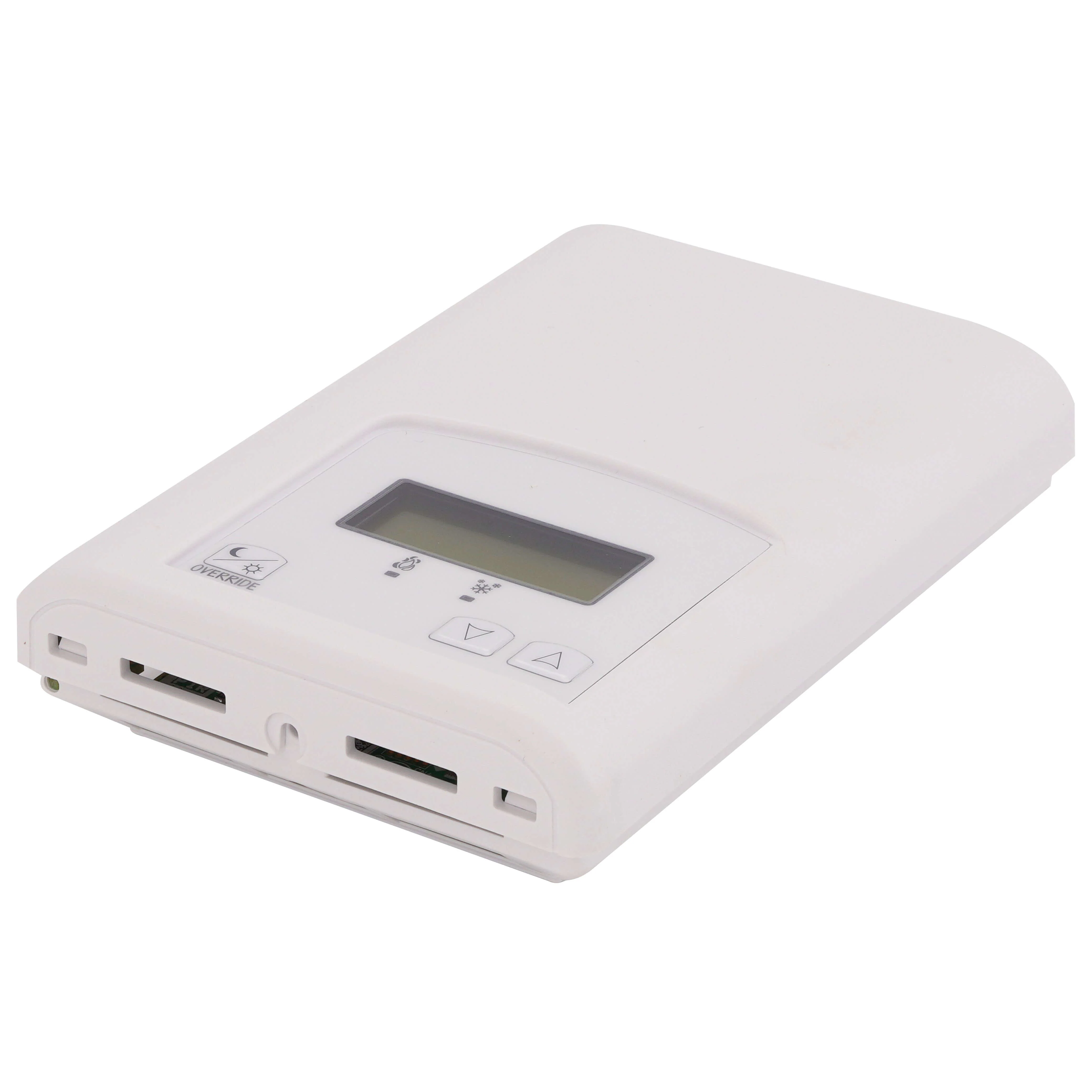

The Schneider Electric (Viconics) VT7200C5031B is a high-performance BACnet MS/TP zone controller engineered for precise management of pressure-dependent VAV systems and terminal equipment. Designed with a veteran technician's workflow in mind, this low voltage zoning thermostat features two on/off or floating outputs, allowing for flexible application across 1-heat/1-cool configurations. The integrated BACnet MS/TP protocol ensures seamless Building Automation System (BAS) integration without the need for additional communication modules, though its network-ready design supports field upgrades as facility requirements evolve. By utilizing a PI proportional control algorithm, the VT7200 series eliminates the temperature offsets common in standard differential controllers, delivering tighter setpoint maintenance. The unit is PIR ready for occupancy sensing and includes three configurable inputs for discharge air sensors or remote room sensing. For commercial HVAC automation, this device simplifies commissioning through a local configuration utility, removing the requirement for specialized software or external tools.
Key Benefits- Advanced BACnet Integration: Native BACnet MS/TP communication provides immediate connectivity to front-end building management systems for centralized monitoring.
- Precise Actuator Control: Dual floating or digital control outputs support 3-point floating actuators or on/off heating and cooling relays.
- Field-Proven Reliability: Hardwired 24 VAC power supply and IP20 protected ABS housing ensure long-term durability in mechanical environments.
- Simplified Commissioning: An intuitive, menu-driven interface allows for full parameter configuration directly at the wall-mounted unit.
- Enhanced Functionality: Supports PIR occupancy covers and contains three configurable inputs to add sensors or monitoring points without extra hardware.
Is specialized software required for the VT7200C5031B setup?
No, this unit features a fully embedded local configuration utility. All application-specific parameters can be set via the keypad, significantly reducing commissioning time for field technicians.
What type of actuators are compatible with this zone controller?
The VT7200C5031B is designed to control 24 VAC on/off or 3-point floating (tri-state) heating or cooling equipment, making it ideal for VAV boxes and zone valve applications.
Can I add occupancy sensing to this model after installation?
Yes, the unit is PIR-ready. You can install an optional PIR accessory cover in the field to enable advanced occupancy-based energy management functions.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
