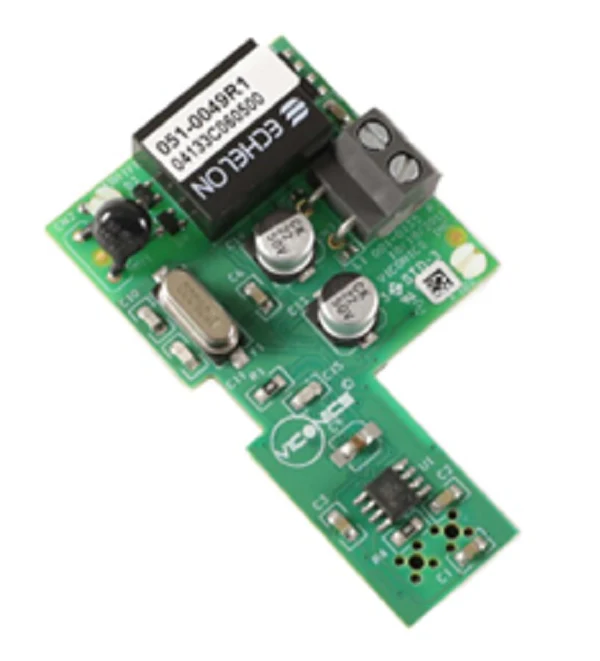

Schneider Electric (Viconics) VCM7600V5000E Card
Integrating LonWorks FTT-10A protocol into your facility and building management system is streamlined with the Schneider Electric VCM7600V5000E LonWorks Communication Card. This retrofit communication module is purpose-built for the VT7600 series room controllers and SE7600 series controllers, allowing technicians to upgrade network-ready hardware for full compatibility with Echelon architecture. By utilizing this HVAC control adapter, you ensure seamless interoperability across diverse building automation systems (BAS) without replacing the existing thermostat base. The module operates on a 24 V AC supply voltage and maintains robust performance in environments with 0% to 95% non-condensing relative humidity. Its snap-in fixing mode facilitates rapid field installation, minimizing downtime during system expansion or network strategy updates. Whether managing fan coils, heat pumps, or rooftop units, this module provides the standard SNVT support required for precise monitoring and control within a professional HVAC network integration project.
Key Benefits- Native Compatibility: Engineered specifically for SE7600 and VT7600 series, ensuring hardware-level handshake and reliability.
- Efficient Scalability: Allows for field-upgradable networking, enabling building managers to add LonWorks integration as budgets or needs evolve.
- Simplified Installation: Features a snap-in fixing mode on a compact printed circuit board, reducing technician labor hours on-site.
- Protocol Standard: Supports the LonWorks FTT-10A protocol for high-density network communication and data point accuracy.
- Rugged Design: Built to operate within a wide temperature range of 32 °F to 122 °F (0 °C to 50 °C).
Is the VCM7600V5000E compatible with older Viconics thermostats?
This card is designed for the modern SE7600 and VT7600 series controllers. It is essential to verify that your specific unit is "Network Ready" typically denoted by a 00 or 18 code in the part number suffix before attempting a retrofit.
Does this module require external power?
The module is powered directly through the host controller's 24 V AC connection, meaning no additional external wiring is required for the card itself once seated on the PCB.
Can I use this for BACnet MS-TP networks?
No, the VCM7600V5000E is specific to the LonWorks protocol. For BACnet applications, the VCM7600V5000B module should be used instead.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
