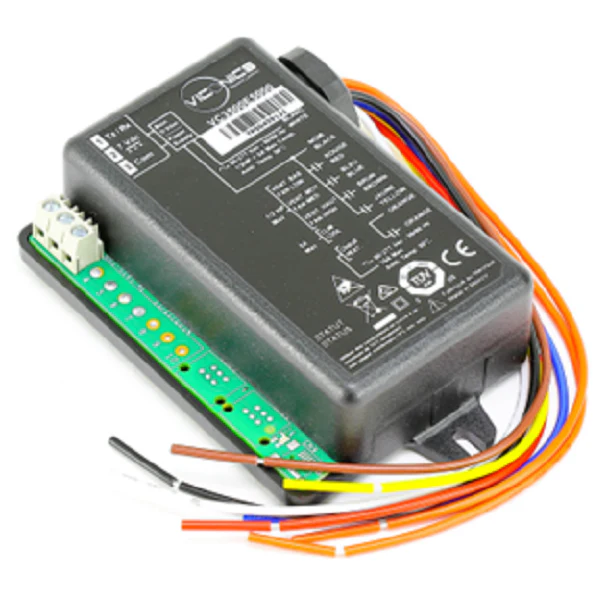

Schneider Electric (Viconics) VC3500E5000 Relay Pack
The Schneider Electric (Viconics) VC3500E5000 Relay Pack is a field-proven solution for line voltage fan coil applications, specifically engineered to interface seamlessly with Viconics SE8000 and SER7300 series room controllers. This transformer relay pack features a universal power supply capable of handling 90 to 277 VAC, allowing for standard 2-pipe or 4-pipe FCU configurations without the need for additional external transformers. It provides five heavy-duty relay outputs, including three speed fan control and two specialized outputs for heating and cooling valve regulation. Designed for high-reliability commercial HVAC environments, the VC3500E5000 eliminates the requirement for complex pilot relays, simplifying retrofit fan coil projects by utilizing existing wiring infrastructure. The solid-state design ensures quiet operation, while the compact enclosure facilitates quick mounting directly to junction boxes or motor cabinets, reducing labor hours for HVAC contractors and building automation technicians.
Key Benefits:- Universal Voltage Compatibility: Operates on any mains supply from 90 to 277 VAC, providing 24 VAC power to the controller.
- Multi-Speed Fan Support: Integrated relays for low, medium, and high speed fan control and on/off valve switching.
- Streamlined Installation: Designed for mounting on a standard 4x4 junction box using the provided lock nut.
- High Load Capacity: Directly drives fractional horsepower motors and resistive electric heat loads up to 10 Amps.
- System Scalability: Supports daisy-chaining up to ten relay packs for complex multi-unit applications.
Is the VC3500E5000 compatible with smart thermostats?
This relay pack is specifically designed as a slave unit for Viconics VT8000 and SER7300 terminal equipment controllers. It is not a standalone controller and requires a compatible master device for operation.
Can I use this for 4-pipe system configurations?
Yes, the VC3500E5000 provides the five relay outputs necessary to manage three-speed fan systems and independent heating/cooling valves used in 4-pipe fan coil units.
Does this model include remote monitoring inputs?
No, the VC3500E5000 is the standard model without remote monitoring inputs. For applications requiring discharge air or return air sensors, the VC3504E5000 variant should be utilized.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
