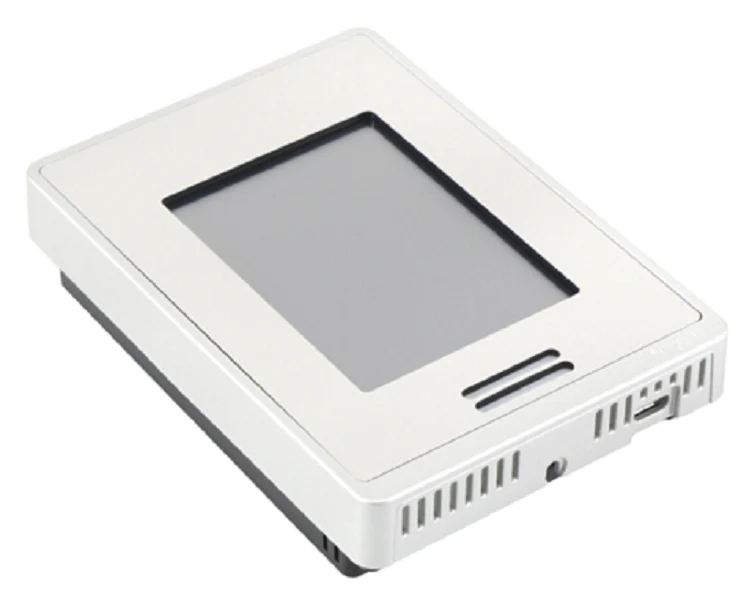

Schneider Electric (Viconics) SE8350U0B00 Controller
The Schneider Electric SE8350U0B00 is a high-performance Bacnet MS/TP room controller engineered for precise management of fan coil units, heat pumps, and terminal equipment. This model features an integrated RH sensor with dehumidification control, allowing for sophisticated indoor air quality management without the need for additional external sensors. Designed with universal outputs, it provides technicians with the flexibility to configure the device for various analog and digital control sequences, ensuring seamless integration into existing Building Automation Systems (BAS). The unit is housed in a professional silver casing and fascia, offering a modern aesthetic for high-end commercial installations. Because this specific configuration contains no PIR motion sensor, it is ideal for zones where occupancy-based logic is managed via external inputs or where constant setpoint maintenance is required regardless of movement. Its low voltage HVAC controller architecture ensures reliable communication over the MS/TP network for real-time monitoring and adjustments.
Key Benefits- BACnet MS/TP Integration: Enables native communication with building management platforms for centralized HVAC zone control.
- Built-in Humidity Control: Integrated sensor manages dehumidification sequences to maintain tight environmental tolerances and prevent mold growth.
- Universal Output Flexibility: Configurable I/O supports a wide range of terminal equipment, reducing the need to carry multiple specialized controllers.
- Customizable User Interface: The silver touchscreen interface allows for streamlined field commissioning and intuitive end-user setpoint adjustments.
- Simplified Wiring: Designed for rapid installation on standard electrical boxes, minimizing labor time during retrofit or new construction phases.
Can the SE8350U0B00 control multi-speed fans?
Yes, the universal outputs can be configured to manage single, two, or three-speed fans, as well as modulating 0-10V fan motors for precise airflow control.
Does this unit require a separate gateway for BACnet communication?
No, this controller communicates directly via BACnet MS/TP, allowing it to reside on the same trunk as other field controllers and supervisors.
Can I add occupancy sensing to this model later?
While this specific unit does not have a built-in PIR sensor, it can be integrated with external wireless ZigBee sensors or wired occupancy inputs to achieve occupancy-based setbacks.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $478.15
-65%$478.15
$167.35Schneider Electric (Viconics) SE8350U0B00 Controller
The Schneider Electric SE8350U0B00 is a high-performance Bacnet MS/TP room controller engineered for precise management of fan coil units, heat pumps, and terminal equipment. This model features an integrated RH sensor with dehumidification control, allowing for sophisticated indoor air quality management without the need for additional external sensors. Designed with universal outputs, it provides technicians with the flexibility to configure the device for various analog and digital control sequences, ensuring seamless integration into existing Building Automation Systems (BAS). The unit is housed in a professional silver casing and fascia, offering a modern aesthetic for high-end commercial installations. Because this specific configuration contains no PIR motion sensor, it is ideal for zones where occupancy-based logic is managed via external inputs or where constant setpoint maintenance is required regardless of movement. Its low voltage HVAC controller architecture ensures reliable communication over the MS/TP network for real-time monitoring and adjustments.
Key Benefits- BACnet MS/TP Integration: Enables native communication with building management platforms for centralized HVAC zone control.
- Built-in Humidity Control: Integrated sensor manages dehumidification sequences to maintain tight environmental tolerances and prevent mold growth.
- Universal Output Flexibility: Configurable I/O supports a wide range of terminal equipment, reducing the need to carry multiple specialized controllers.
- Customizable User Interface: The silver touchscreen interface allows for streamlined field commissioning and intuitive end-user setpoint adjustments.
- Simplified Wiring: Designed for rapid installation on standard electrical boxes, minimizing labor time during retrofit or new construction phases.
Can the SE8350U0B00 control multi-speed fans?
Yes, the universal outputs can be configured to manage single, two, or three-speed fans, as well as modulating 0-10V fan motors for precise airflow control.
Does this unit require a separate gateway for BACnet communication?
No, this controller communicates directly via BACnet MS/TP, allowing it to reside on the same trunk as other field controllers and supervisors.
Can I add occupancy sensing to this model later?
While this specific unit does not have a built-in PIR sensor, it can be integrated with external wireless ZigBee sensors or wired occupancy inputs to achieve occupancy-based setbacks.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
