Schneider Electric (Viconics) R851V-8 Step Controller

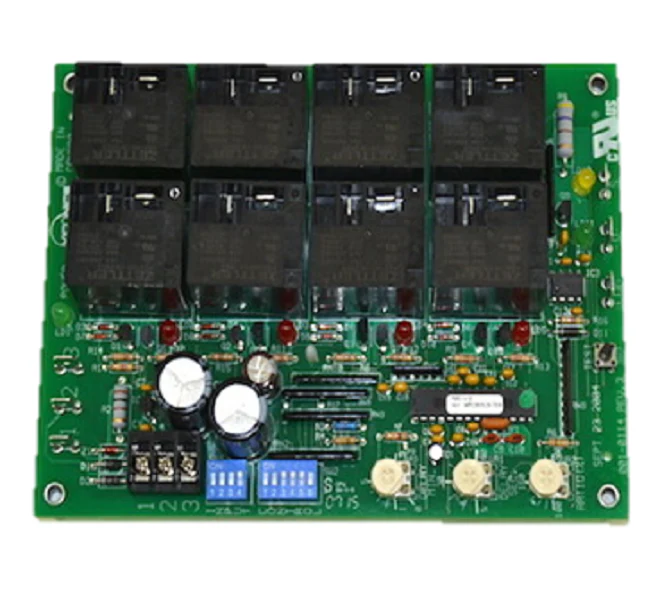

The Schneider Electric (Viconics) R851V-8 Step Controller is a high-performance, microcomputer-based solution engineered for precise modulation of multi-stage electric duct heaters. Designed for heavy-duty commercial HVAC applications, this 8-stage step controller features an integrated vernier stage that provides seamless load modulation from 0 to 100%. This proportional control ensures stable discharge air temperatures and minimizes mechanical wear by utilizing either LIFO or FIFO sequencing logic, which is essential for extending the operational life of contactors in high-cycling environments.
Operating on a 24V AC supply, the R851V-8 is highly versatile, supporting 0 to 10 Vdc (10K Ohm impedance), 4-20 mA, or 0-135 Ohm input signals. The vernier output supports both 0 to 10 Vdc 5 mA analog signals and 6 Vdc 30mA max pulsed signals, allowing it to interface directly with SCR power controllers or solid-state relays. Contractors can simplify commissioning via the onboard test button, which bypasses inter-stage delays to verify stage activation, while dual potentiometers allow for field-adjustable inter-stage delays ranging from 5 seconds to 10 minutes.
Key Benefits of the R851V-8
- Precision Load Modulation: Integrated vernier stage offers 0-100% capacity control, eliminating the temperature swings common in standard on/off staging.
- System Flexibility: Field-selectable LIFO/FIFO sequencing permits linear or progressive staging to match specific equipment requirements.
- Scalable Architecture: Master-slave functionality allows for expanding control up to 16 stages when paired with an additional unit.
- Reliable Integration: Compatible with industry-standard 0-10V signals and features isolated outputs for safe interfacing with various 24 Vac components.
- Efficient Troubleshooting: Visible LED status indicators for each stage and a manual override test button streamline field diagnosis.
Common Questions
How does the vernier stage improve heater performance?
The vernier stage acts as a "modulating gap filler" between mechanical stages. By using an SCR on the first stage, the R851V-8 provides infinitely variable heat output rather than large, discrete steps, significantly improving comfort and energy efficiency.
Can I use this controller for electric boilers?
While the R851V-8 is optimized for duct heaters, it shares the same microcomputer architecture as the R851B series; however, it is specifically configured for airflow-based heating applications. For dedicated boiler sequencing, ensure the specific staging logic meets your hydronic requirements.
What is the purpose of the 100% to 200% ratio adjustment?
The ratio potentiometer allows technicians to match the vernier stage capacity to the size of the on/off stages. Setting this correctly ensures a smooth transition and prevents "hunting" as the controller cycles additional stages on or off.
