Schneider Electric (Viconics) R820-643 Control

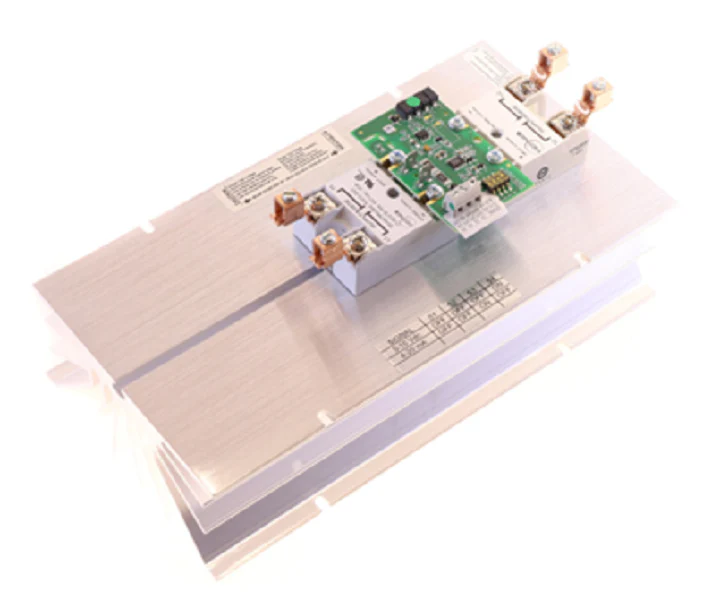

Professional contractors and HVACR technicians requiring precise temperature management for resistive heating loads rely on the Schneider Electric Viconics R820-643. This microprocessor-based SCR Power Control offers superior 3 phase SCR power control for HVAC electric duct heaters and industrial processes. Operating across a broad 24-600 Vac range with a robust 45 Amp capacity, it delivers precise modulation via zero-cross firing, which eliminates electrical noise and interference with sensitive equipment. The unit is dip switch selectable, allowing seamless integration with 0-10 VDC, 4-20 mA, or 0-135 Ohm signals from building automation systems. Designed for longevity in demanding environments, it features a high-efficiency anodized heat sink and self-resetting over-temperature protection that automatically shuts down the controller if ambient temperatures exceed 180°F. Whether for surface mounting or in-panel mounting, the R820-643 ensures reliable electric heat control and optimal system performance without the chatter or wear associated with traditional mechanical contactors.
Key Benefits
- Broad Compatibility: Supports multiple control signals (0-10 VDC, 4-20 mA) for easy integration with existing automation or thermostats.
- Advanced Safety: Integrated self-resetting thermostatic protection prevents hardware damage during extreme heat conditions.
- Clean Operation: Zero-cross firing technology ensures high-efficiency power delivery and minimal electromagnetic interference (EMI).
- Versatile Installation: Compact design with a factory-installed heat sink allows for flexible surface or in-panel mounting.
- Reliable Performance: Solid-state construction eliminates moving parts, providing a significantly longer service life than standard relays in 3-phase HVAC systems.
Common Questions
Can I use the R820-643 for motor control or inductive loads?
No, this SCR power controller is specifically engineered for resistive loads only, such as electric duct heaters and ovens. Using it on inductive loads like motors or compressors can cause component failure.
Do I need to derate the amperage if I mount this inside a control panel?
Yes. While the unit supports 45 Amps, in-panel installations require adequate ventilation. If mounted in non-ventilated areas or in certain orientations, a 25% amperage derating may be necessary to maintain thermal stability.
How do I confirm the unit is operating correctly?
The R820-643 features a status LED that provides real-time feedback. A pulsing LED signals proper operation and helps technicians troubleshoot input signal issues quickly during service calls.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
