Schneider Electric (Viconics) R820-621-REV2 Control

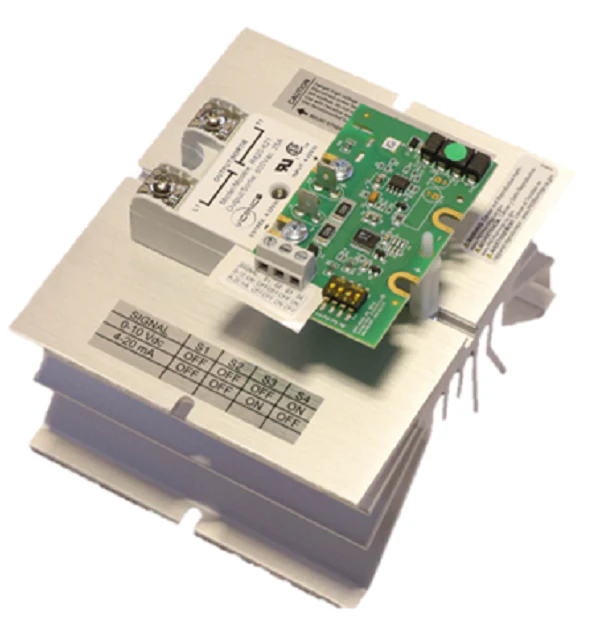

The Schneider Electric R820-621-REV2 is a field-proven SCR power controller engineered for precise modulation of electric heating loads in demanding commercial and industrial HVACR environments. Designed by Viconics, this solid-state silicon controlled rectifier supports a broad voltage range up to 600V AC and is rated for a 25A current capacity on single-phase systems. This unit is specifically optimized for resistive loads, making it the industry standard for controlling modulating electric duct heaters and multi-stage heating equipment. Unlike standard contactors, the R820-621-REV2 utilizes high-speed switching to provide granular control, significantly reducing thermal shock to heating elements and extending the operational life of the system.
For veteran technicians, the R820-621-REV2 offers streamlined integration through its multi-input compatibility. The onboard DIP switch configuration allows for seamless 4-20mA control signal, 0-10 VDC, or 0-135 ? input selection, ensuring compatibility with most Building Automation Systems (BAS) and analog thermostats. The assembly includes a factory-installed, high-efficiency anodized heat sink for superior heat dissipation, and a pulse status LED for rapid field diagnostics. Its zero-cross firing design minimizes electromagnetic interference (EMI) with sensitive electronics, ensuring stable performance across the entire control loop.
- Precise Load Modulation: Eliminates the "on-off" cycling of traditional magnetic contactors, providing steady temperature control for electric duct heaters.
- Universal Input Compatibility: Field-selectable via DIP switches to accept 0-10 VDC, 4-20 mA, or 0-135 Ohm signals for maximum flexibility.
- Integrated Thermal Management: Features a factory-assembled heat sink and built-in over-temperature protection with a self-resetting 82°C (180°F) safety cutoff.
- Robust Field Reliability: UL recognized and CSA approved construction designed for surface or in-panel mounting in high-voltage 347V to 600V applications.
Common Questions
What type of loads can the R820-621-REV2 control?
This SCR is strictly designed for resistive loads only. It should not be used for inductive loads such as motors or transformers, as this will result in component failure.
Does this unit require a separate power supply for the control board?
Yes, the control electronics require a 24 VAC power source. Ensure the transformer is properly fused and meets local electrical codes for Class 1 or Class 2 circuits.
How do I troubleshoot if the unit is not firing?
Check the status LED. A flashing LED indicates a valid input signal and proper operation. If the LED remains off, verify your 24V power supply and ensure your input signal polarity is correct for the selected DIP switch setting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $328.17
-65%$328.17
$114.86Schneider Electric (Viconics) R820-621-REV2 Control
