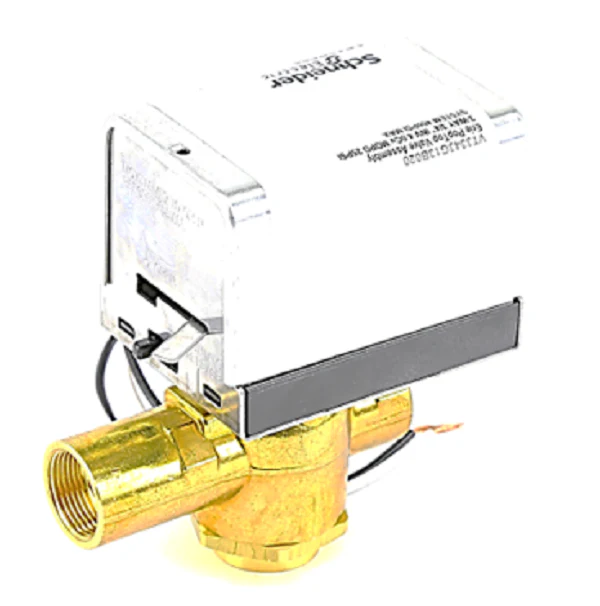

Schneider Electric (Erie) VT3343G13B020 Valve Assembly
When you need a drop-in replacement for hydronic heating and cooling systems, the Schneider Electric Erie VT3343G13B020 Valve Assembly is the industry standard for 3-way mixing or diverting. This 120V 3-way zone valve features a rugged forged brass body with a 3/4 inch inverted flare connection, making it ideal for retrofitting older fan coil units and baseboard systems without extensive repiping. Equipped with the reliable Erie PopTop actuator (AG13B020), it employs a spring return mechanism that ensures a fail-safe position during power loss. With a 4.0 Cv flow coefficient and a static pressure rating of 300 psi, this inverted flare zone valve handles high-demand residential and commercial loops with zero-leakage performance. The synchronous motor is designed for high-cycle longevity in closed-loop systems. Installation is streamlined via the one-handed two-position zone valve engagement, allowing you to mount the head after the body is sweat or flared into the line.
Key Benefits
- Universal Retrofit Compatibility: Use the 3/4 inch inverted flare body to replace legacy valves in restricted spaces without specialty tools.
- PopTop Actuator Design: The Erie PopTop actuator snaps into place instantly, facilitating rapid field replacement of the motorized head.
- Mechanical Reliability: Features a high-torque synchronous motor and spring return for consistent fail-to-closed or open operation.
- High Flow Performance: The 4.0 Cv rating provides optimal fluid dynamics for modern hydronic air handlers and unit ventilators.
Common Questions
- Can I replace the actuator without draining the system? Yes, the PopTop design allows the motorized head to be removed with a single button press while the valve body remains pressurized in the line.
- Is this valve suitable for potable water applications? No, this assembly is strictly for closed-loop hydronic heating and cooling systems and is not rated for potable water.
- What is the proper orientation for the inverted flare seat? Ensure the flat on the paddle shaft aligns with the intended flow direction before snapping the 120V actuator onto the brass body.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $119.97
-65%$119.97
$41.99Schneider Electric (Erie) VT3343G13B020 Valve Assembly
When you need a drop-in replacement for hydronic heating and cooling systems, the Schneider Electric Erie VT3343G13B020 Valve Assembly is the industry standard for 3-way mixing or diverting. This 120V 3-way zone valve features a rugged forged brass body with a 3/4 inch inverted flare connection, making it ideal for retrofitting older fan coil units and baseboard systems without extensive repiping. Equipped with the reliable Erie PopTop actuator (AG13B020), it employs a spring return mechanism that ensures a fail-safe position during power loss. With a 4.0 Cv flow coefficient and a static pressure rating of 300 psi, this inverted flare zone valve handles high-demand residential and commercial loops with zero-leakage performance. The synchronous motor is designed for high-cycle longevity in closed-loop systems. Installation is streamlined via the one-handed two-position zone valve engagement, allowing you to mount the head after the body is sweat or flared into the line.
Key Benefits
- Universal Retrofit Compatibility: Use the 3/4 inch inverted flare body to replace legacy valves in restricted spaces without specialty tools.
- PopTop Actuator Design: The Erie PopTop actuator snaps into place instantly, facilitating rapid field replacement of the motorized head.
- Mechanical Reliability: Features a high-torque synchronous motor and spring return for consistent fail-to-closed or open operation.
- High Flow Performance: The 4.0 Cv rating provides optimal fluid dynamics for modern hydronic air handlers and unit ventilators.
Common Questions
- Can I replace the actuator without draining the system? Yes, the PopTop design allows the motorized head to be removed with a single button press while the valve body remains pressurized in the line.
- Is this valve suitable for potable water applications? No, this assembly is strictly for closed-loop hydronic heating and cooling systems and is not rated for potable water.
- What is the proper orientation for the inverted flare seat? Ensure the flat on the paddle shaft aligns with the intended flow direction before snapping the 120V actuator onto the brass body.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
