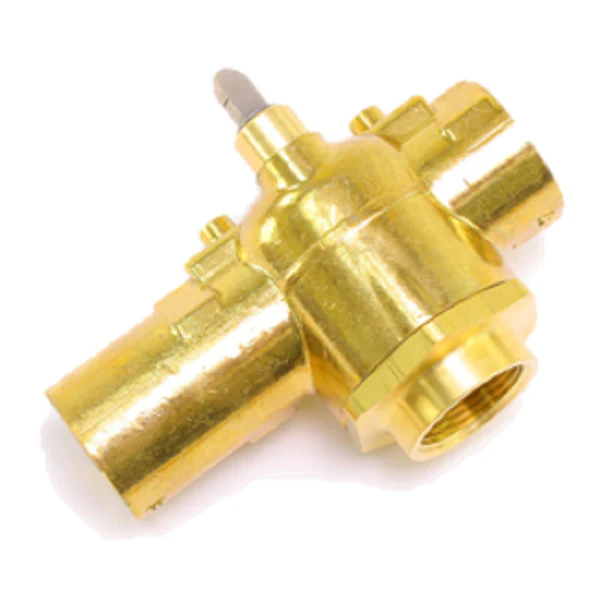

Schneider Electric (Erie) VT3343 Valve Body
When you need a reliable, drop-in solution for hydronic zone control, the Schneider Electric Erie VT3343 Valve Body stands as a professional-grade choice. This 3/4-inch three-way zone valve body is engineered with a focus on ease of service and durability in closed-loop hydronic systems. Featuring a rugged forged brass construction, the VT3343 is designed to manage hot or chilled water and glycol solutions up to 50% concentration. With a 4.0 Cv rating, it provides consistent flow performance for fan coils and baseboard applications, supporting a maximum static pressure of 300 psi and diverting/mixing capabilities for precise temperature regulation.
The Erie PopTop series is widely recognized for its "snap-in" actuator mounting, allowing for tool-free replacement of the drive head without breaking the inverted flare (retrofit) connections. This design minimizes downtime during maintenance cycles. The VT3343 3/4-inch valve utilizes a BUNA-N paddle for bubble-tight shut-off, ensuring no leakage across ports when the actuator is de-energized. For contractors performing retrofits, the inverted flare fittings on this model simplify the upgrade of legacy systems, making it a staple for high-efficiency zone management.
Key Benefits- Removable Actuator Design: Includes the PopTop quick-release button for easy service without draining the system.
- Durable Brass Internals: Features a nickel-plated stem and forged brass body rated for 300 psi to handle demanding system pressures.
- High Flow Capacity: A 4.0 Cv rating ensures optimal delivery for larger residential and commercial hydronic heating zones.
- Retrofit Compatibility: Designed with 3/4-inch inverted flare connections specifically for replacing older Erie and similar legacy valve bodies.
Is the actuator included with the VT3343?
No, the VT3343 is the zone valve body only. It is compatible with AG and AH series PopTop actuators, which must be purchased separately based on your voltage and end-switch requirements.
Can this valve be used in steam applications?
The VT3343 is rated for hot and chilled water systems. For low-pressure steam applications up to 15 psi, you should specify the VS series valve bodies and high-temperature actuators.
What is the proper flow direction for this 3-way valve?
For mixing applications, use the two bottom ports as inlets and the side port as the outlet. For diverting, flow enters the side port and is directed to either of the two outlet ports based on the actuator position.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
