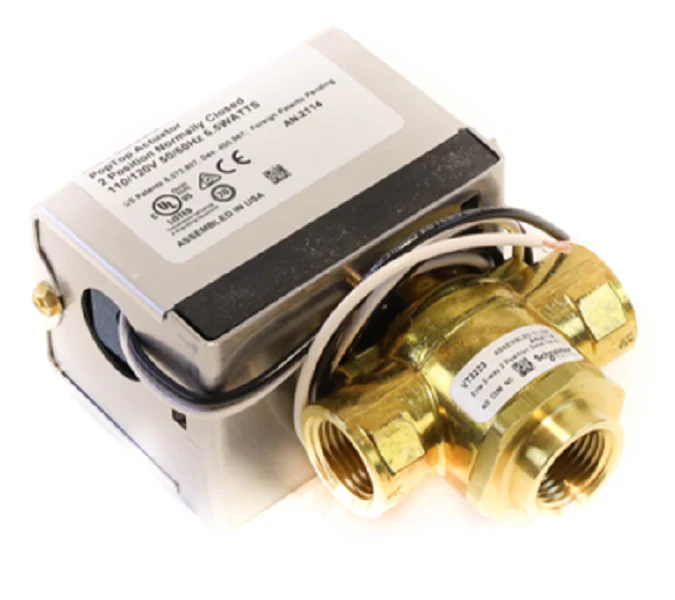

Schneider Electric (Erie) VT3223G13B020 Valve Assembly
Engineered for hydronic heating and cooling systems, the Schneider Electric Erie VT3223G13B020 PopTop valve is a robust 120V three-way zone valve designed for reliable two-position control. This assembly features a 1/2 inch NPT connection and a high-capacity 4.0 Cv flow coefficient, making it an ideal choice for fan coil units and baseboard applications where precise flow regulation is required. The spring return valve mechanism ensures a fail-safe return to the normal position during power loss, preventing overheating or freezing in critical circuits. Built with the industry-standard PopTop design, the VT3223G13B020 actuator allows for quick, tool-free installation and maintenance, significantly reducing labor time on the job site. This 120V HVAC solenoid valve utilizes a synchronous motor to provide consistent torque, ensuring positive shut-off against high close-off pressures. Whether you are performing a three-way valve replacement or a new system install, this assembly provides the durability needed for demanding commercial and residential environments.
Key Benefits for Contractors
- High Flow Capacity: The 4.0 Cv rating supports high-flow applications while maintaining low pressure drops across the coil.
- Fail-Safe Operation: The mechanical spring return provides reliable system protection during power outages.
- Simplified Maintenance: The one-handed removal lever on the actuator enables rapid replacement without breaking the plumbing line.
- Rugged Construction: Designed to handle fluid temperatures up to 200°F, ensuring longevity in hydronic heating loops.
- Universal Compatibility: The 1/2" NPT female threads allow for seamless integration with standard iron pipe or copper adapters.
Common Installation Questions
Can the actuator be replaced without draining the system?
Yes, the PopTop design allows the actuator to be swapped out without ever opening the wet side of the valve body.
Which port is the "Normally Closed" port on this three-way valve?
On the VT3223 series, the bottom port is typically the bypass port, while the side ports serve as the main flow path. Always verify the flow arrow on the casting for specific divert/mix configurations.
Does this valve require a specific mounting orientation?
You can mount the valve in any position except for upside down (actuator below the horizontal plane) to prevent condensation from entering the motor housing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $119.25
-65%$119.25
$41.74Schneider Electric (Erie) VT3223G13B020 Valve Assembly
