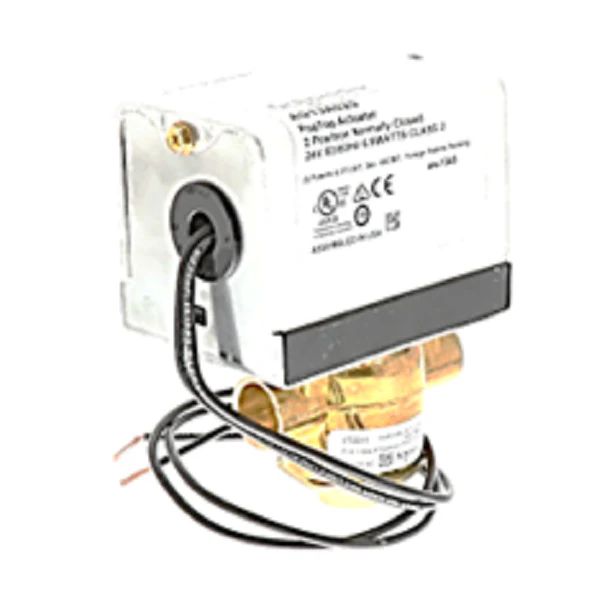

Schneider Electric (Erie) VT3211G13A020 Valve Assembly
The Schneider Electric (Erie) VT3211G13A020 Valve Assembly is a professional-grade three-way mixing/diverting valve engineered for critical hydronic zone control. This 1/2 inch sweat connection unit features a 1.5 Cv flow coefficient, making it the ideal choice for fan coil and baseboard applications where precise fluid management is required. Utilizing the reliable Erie PopTop actuator, this 2-position 24Vac zone valve employs a robust spring return mechanism to ensure a fail-safe normally closed position during power loss. The forged brass body is rated for up to 400 psi static pressure and handles media temperatures from 32°F to 200°F. Contractors value the hysteresis synchronous motor for its operational longevity and the tool-less actuator mounting that streamlines field service. Whether you are performing a residential HVAC zone system upgrade or commercial maintenance, this brass zone valve assembly provides the 60 PSI close-off pressure needed for demanding hydronic heating and cooling environments.
Key Benefits for the Contractor- Effortless Serviceability: The PopTop design allows for actuator replacement without draining the system or removing the valve body from the line.
- Fail-Safe Reliability: Integrated spring return operation ensures the valve returns to its normally closed state immediately upon power failure.
- High Pressure Tolerance: Rated for 400 psi static pressure, providing a significant safety margin in diverse residential and commercial piping layouts.
- Application Versatility: Compatible with hot water, chilled water, and up to 50% glycol solutions for year-round HVAC zone control.
- Can I manually operate this valve during a power outage? Yes, the unit includes a manual override lever that allows you to open the valve manually when power is off; it resets automatically once power is restored.
- What is the proper procedure for soldering this valve? Always remove the actuator before soldering. To protect the internal seals, ensure the manual lever is in the open position and use a wet rag to dissipate heat from the brass valve body.
- Why is my zone valve motor running hot? It is normal for the synchronous motor to feel warm to the touch during operation as it stalls to hold the valve in the energized position. Ensure the 24V transformer is correctly sized for the VA load.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
