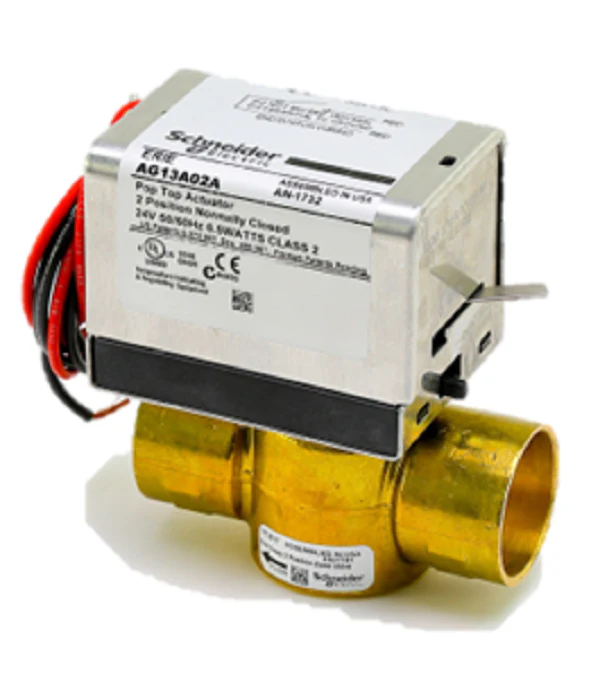

Schneider Electric (Erie) VT2517G13A02A Valve Assembly
The Schneider Electric Erie VT2517G13A02A is a robust 2-way normally closed zone valve designed for high-demand hydronic applications. Featuring a 1-1/4" sweat connection and an 8.0 Cv flow coefficient, this PopTop series valve ensures consistent flow control in commercial and residential HVAC systems. The actuator operates on 24Vac and utilizes a reliable spring return mechanism to provide fail-safe operation during power loss. This specific model includes an integrated end switch, allowing for seamless sequencing with circulator pumps or boiler controllers. The modular design of the Erie PopTop valve assembly permits quick actuator removal without draining the system, significantly reducing maintenance downtime for contractors. Built to handle closed-loop water applications, it maintains a tight seal against high differential pressures, ensuring system efficiency and preventing ghost flows in zoned hydronic circuits.
Project Advantages- 8.0 Cv Rating: High-capacity flow rate minimizes pressure drop across the loop.
- Synchronous Motor: Provides reliable two-position control for consistent opening and closing cycles.
- Integrated End Switch: Simplifies wiring for peripheral equipment signaling and burner control.
- Snap-In Installation: One-handed actuator removal facilitates easier servicing in tight mechanical closets.
- Normally Closed Logic: Ensures the valve returns to its closed state upon loss of power for system protection.
What is the maximum fluid temperature rating for this assembly?
The VT2517G13A02A is typically rated for fluid temperatures ranging from 32°F to 200°F, making it suitable for standard hydronic heating and fan coil applications.
Can the actuator be replaced without replacing the entire valve body?
Yes, the PopTop series is designed for modularity; the 24V actuator can be swapped onto the 1-1/4" sweat body without breaking the plumbing connections.
Is this valve suitable for potable water systems?
No, this Erie zone valve is engineered specifically for closed-loop hydronic systems and is not intended for domestic hot water or potable applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
